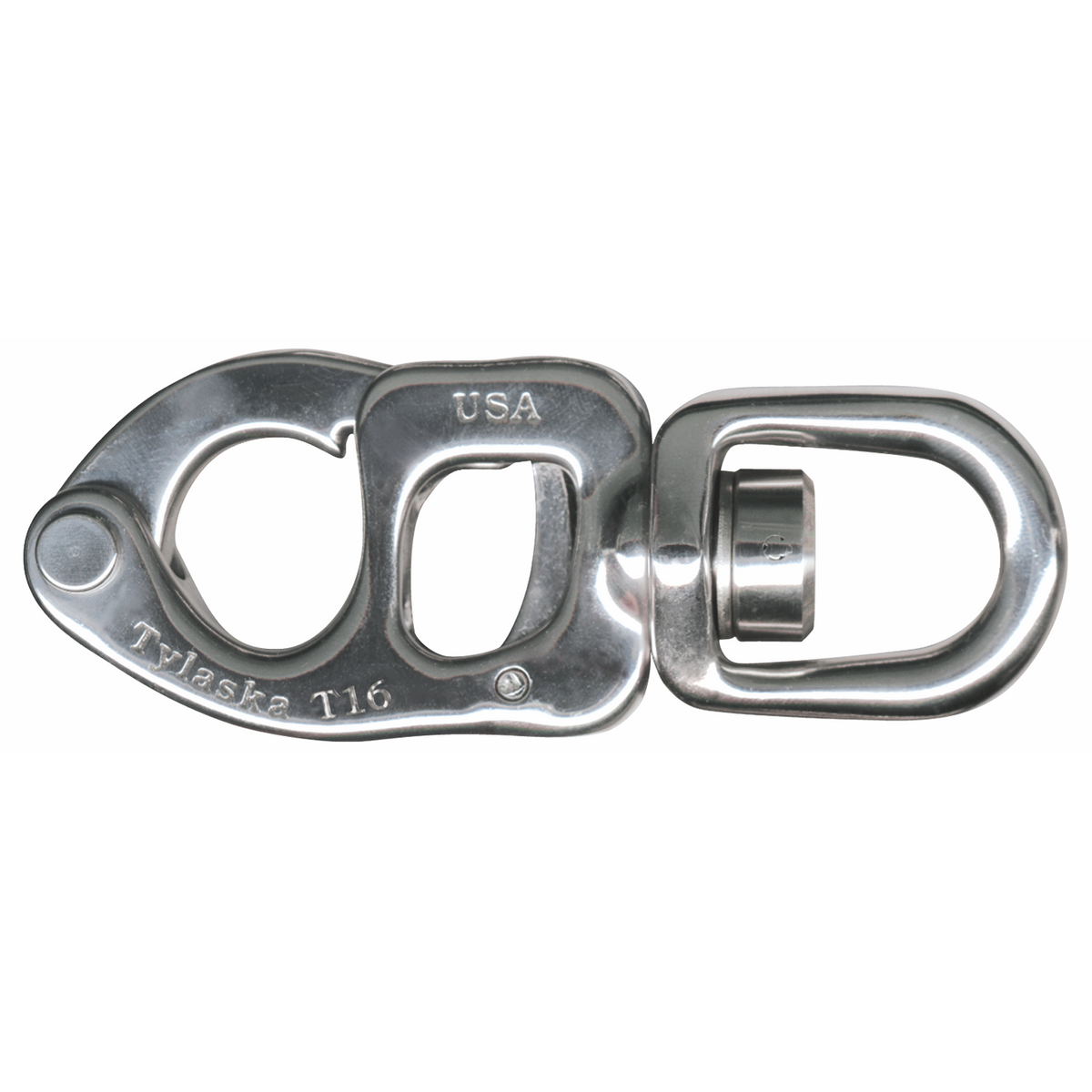

The Tylaska T16 Standard Bail Snap Shackle delivers big-boat strength at a fraction of the weight of conventional shackles. Machined from aerospace-grade 17-4PH stainless steel, it has a 16,000 lb breaking strength and weighs only 9.1 oz, making it ideal for halyards and sheets on 40–50 ft sailboats.

The standard bail leaves room to attach a line while keeping weight and length to a minimum. Tylaska's patented trigger release opens under high load with one hand, so sails can be released quickly and safely.

Features

• Patented trigger release mechanism that can be opened under high load
• Over-the-center load bearing design
• One-handed operation
• Aerospace-grade 17-4PH stainless steel, corrosion resistant
• Every unit is pull tested and opened under load at the factory
• Made in the USA

Specifications

• Breaking strength: 16,000 lb (7,257 kg)
• Safe working load: 8,000 lb (3,636 kg)
• Weight: 9.1 oz
• Overall length: 4.74 in
• Bail opening: 0.79 in
• Bail type: Standard bail (SB)

Best for

• Halyards and sheets on 40–50 ft sailboats
• Opened with a Tylaska T5–T16 handheld fid

Manufacturer part number: TY1016-S
