Shadow Caster Light Commander

• NMEA2000 Backbone connectivity to select Simrad Products
• Global control for all lighting
• Up to 6 separate zones of lighting control — expandable to 18 zones by connecting multiple units
• 6 "Instant ON" switch inputs for enabling lights without MFD control
• Support for RGB and RGBW lighting
• Optional wireless connectivity for control from a mobile device
• IP67 Water resistant rated housing with waterproof connections
• Deutsch style IP67 rated connections, for clean OEM installations
• "Digitally fused" over current protection circuits, 15amps/channel (X4)

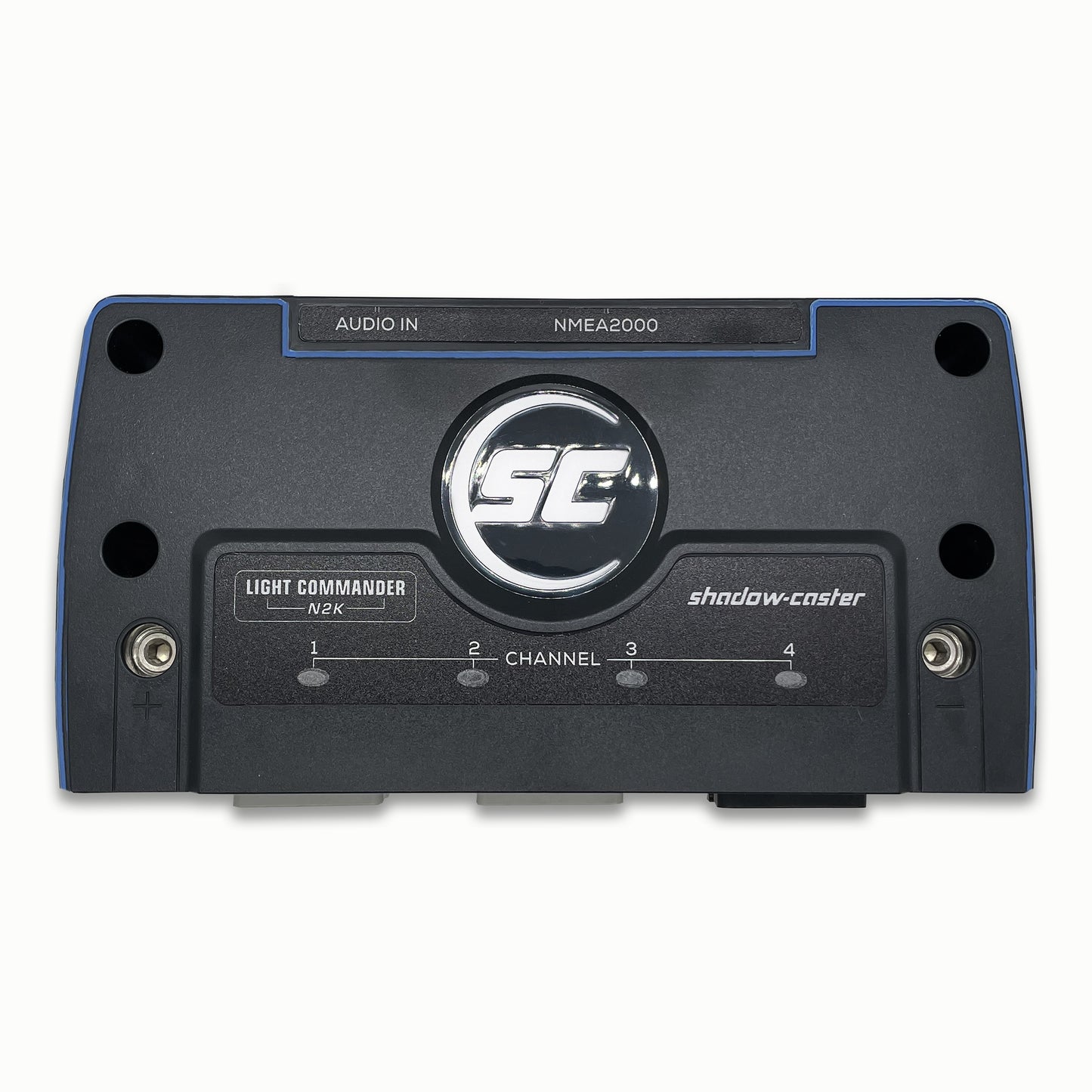

The SHADOW-CASTER™ Light Commander SCM-LC is an NMEA2000 lighting control based on the newly published NMEA2000 lighting control standards. Utilization of NMEA2000 lighting standards enable "next level" implementation of lighting control and marine system integration and system interoperability.

The expandable SC-LC multi-zone lighting controller supports up to 6 zones of lighting per module with native support for 4 zones of RGB or RGBW lights. The lighting controller supports programs including multiple color fade, music sync and color rotation. The Light Commander comes in a fully sealed IP67 housing, with backlit logo design.

Communication bridge allow connection to your compatible MFD and utilize the SHADOW-CASTER™ custom lighting interface to create lighting scenes, customize and name zones and assign devices to zones, use the SCM-LC-PLUS. Compatible with Garmin, Simrad, Lowrance, B&G, Raymarine, and Furuno.

• SCM-LC-N2K Light Commander
