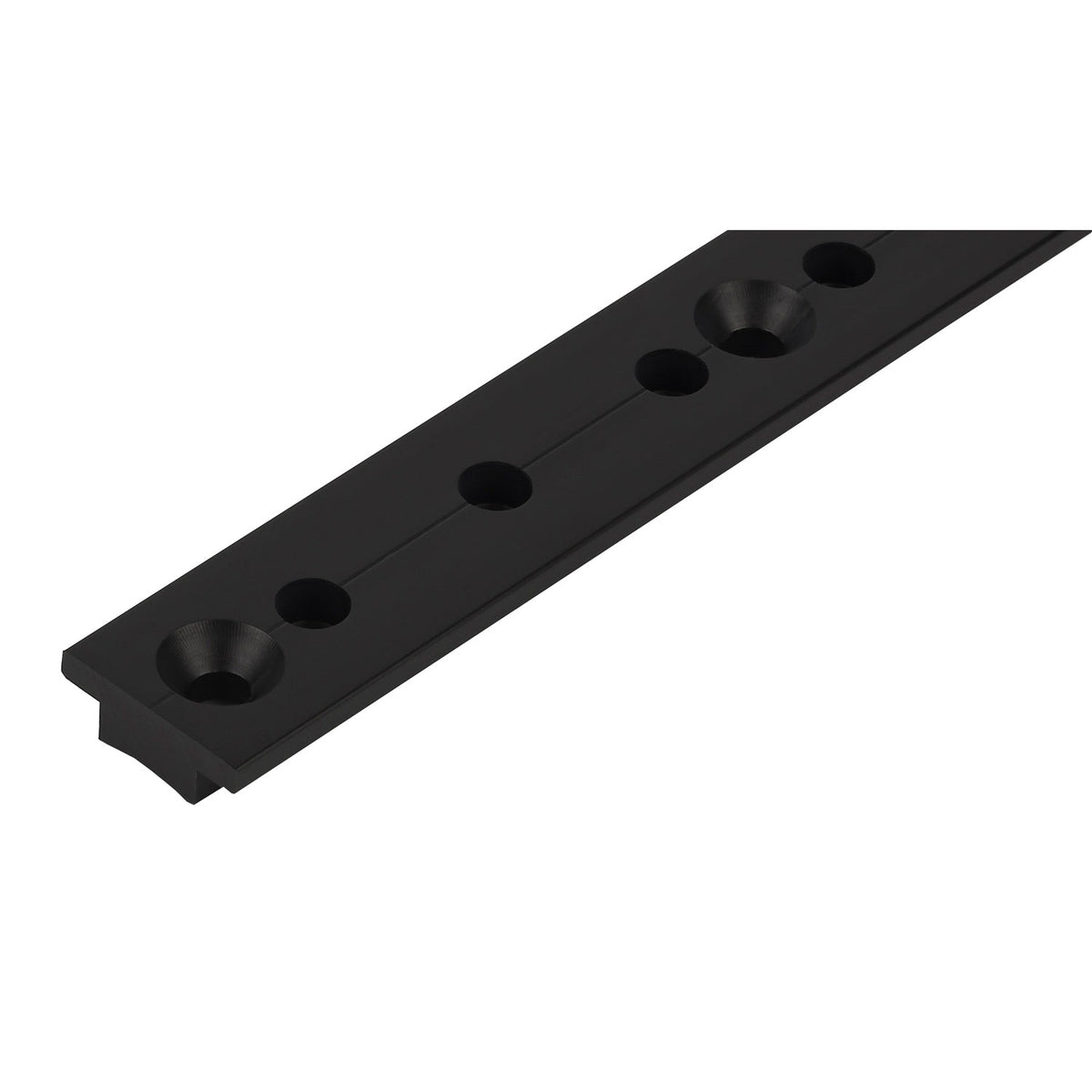

Schaefer aluminum T-track incorporates a concave-shaped riser that allows the track to remain steady when mounted on curved surfaces like masts or booms. The shaped bottom also holds sealant well when mounting on decks and cap rails.

This T-track is precision machined for proper countersink depths on fastener and stop pin holes.
All Schaefer T-track now comes with additional pin-stop holes at 1-3/8" intervals for finer adjustment of car position and sheeting angle. So you now get three adjustment holes between fasteners instead of just one.

¥ 3/4" track Ñ measures 3/4" x 1/8" and uses #10 flat head fasteners spaced every 3 inches. The pin-stop holes are 1/4" in diameter, and the matching cosmetic end stops are SCH 74-34
¥ 1" track Ñ measures 1" x 1/8" and uses 1/4" flat head fasteners spaced every 4 inches. The pin-stop holes are 1/4" in diameter, and the matching cosmetic end stops are SCH 74-35
¥ 1-1/4" track Ñ measures 1-1/4" x 3/16" and uses 5/16" flat head fasteners spaced every 4 inches. The pin-stop holes are 3/8" in diameter, and the matching cosmetic end stops are SCH 74-36
¥ 1-1/2" track Ñ measures 1-1/2" x 1/4" and uses 3/8" flat head fasteners spaced every 4 inches. The pin-stop holes are 7/16" in diameter, and the matching cosmetic end stops are SCH 74-39

This track is also available with clear anodizing for a silver finish. See Related Products, below.

Note Ñ due to its length, track over 8 ft in length must be shipped via truck or air freight.
