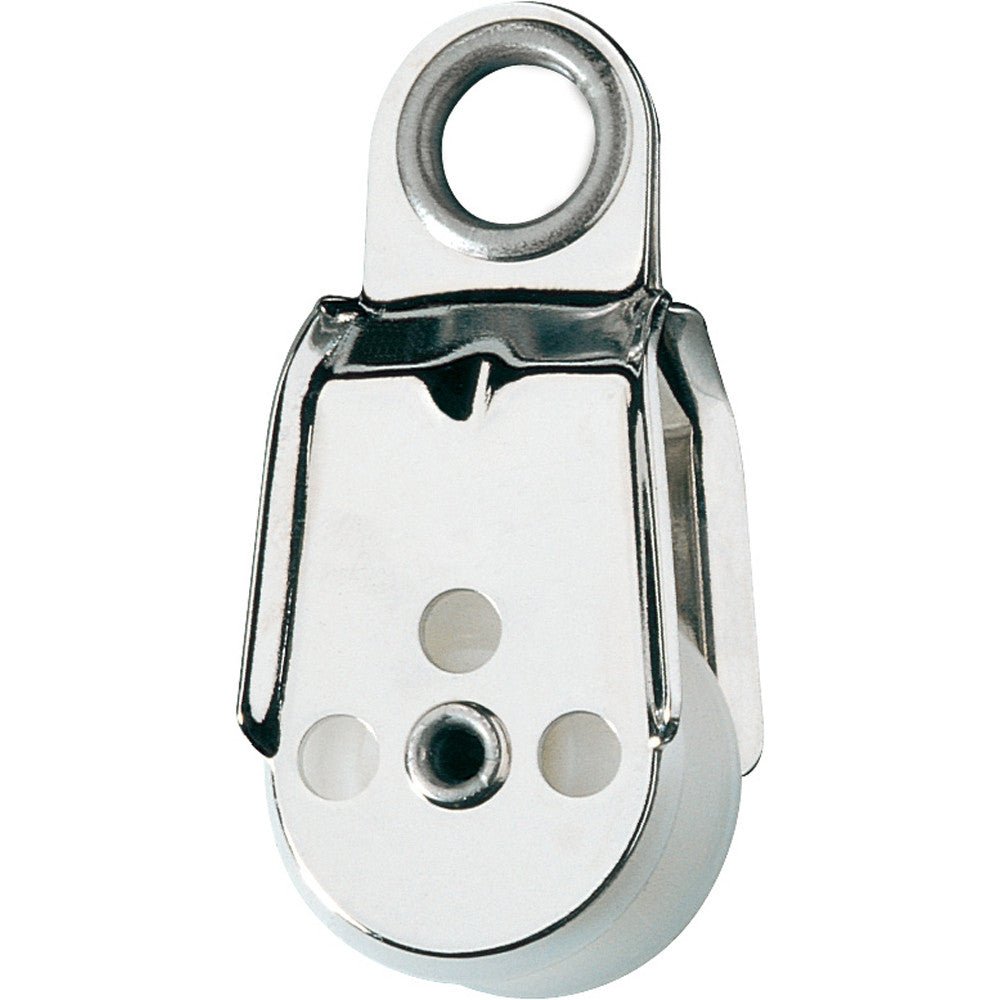

Series 30 Utility Block - Single - Ferrule Eye Head

Stainless steel cheeks and Acetal sheaves ensure a long service life with virtually no maintenance. Hollow rivets in the block heads can be fitted with shackles, which can also be used to add a becket for extra purchase.

Features:

• Lightweight durable construction
• Economical
• Maintenance free

Applications:

• Vang, cunningham and trapeze retriever systems on dinghies
• Leech line tackles, bunk adjusters, etc on larger yachts

Materials:

• U.V. stabilized Acetal sheaves
• Grade 316 stainless steel cheeks

Specifications:

Sheave Ø:29mm(1-1/8")

Max. Rope Ø: 10mm(3/8")

M.W.L.:350kg(770lbs)

B. L.:500kg(1,100lbs)

Weight:40g(1.4oz)
