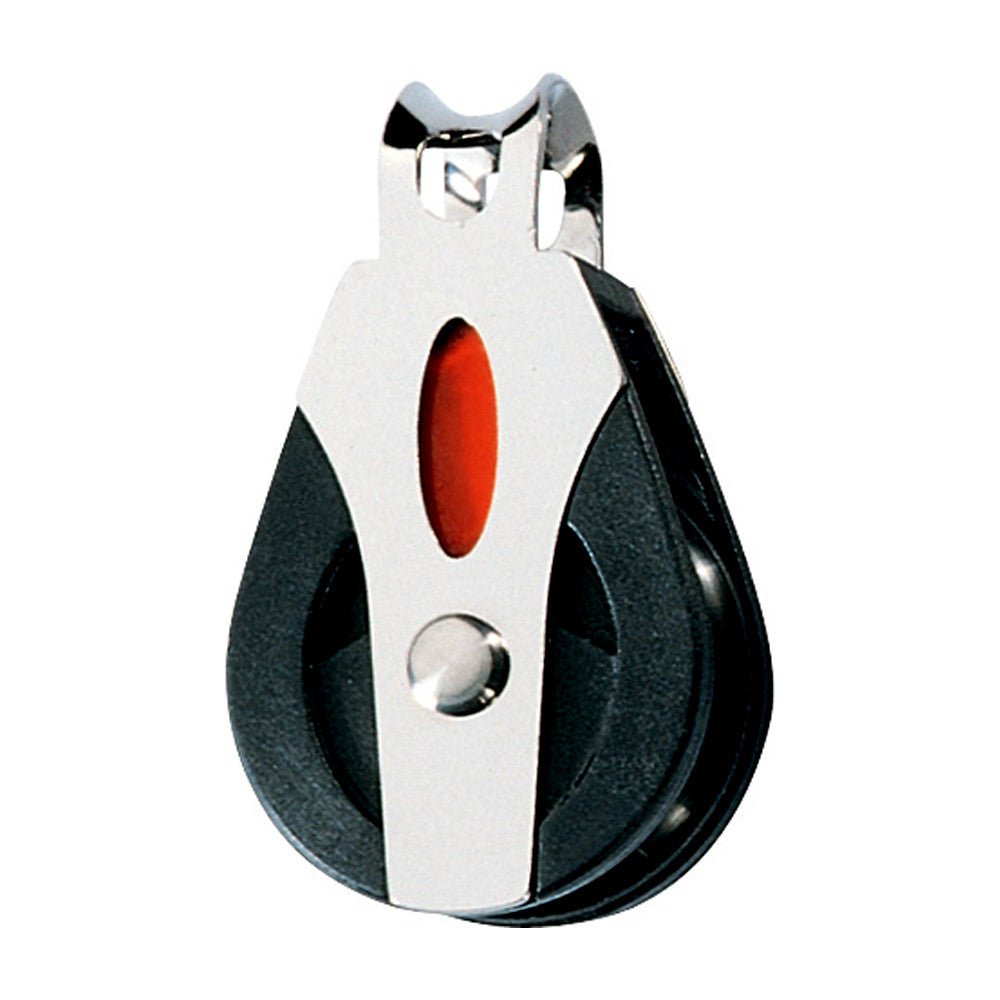

Ronstan Series 30 Ball Bearing Block - Single - Loop Top

Ronstan Series 30 Ball Bearing Block - Single - Loop Top

SKU:RON-RF30101

Low stock: 5 left

Regular price $17.94 USD
Regular price $23.49 USD Sale price $17.94 USD
Sale Sold out
Shipping calculated at checkout.

Series 30 Ball Bearing Block - Single - Loop Top

Features:

  • Low friction 2-stage ball bearing system provides consistent performance over the full working load range
  • High static and dynamic load capacity
  • Light weight
  • Versatile head fittings
  • Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction
  • Can be fitted with a shackle in either of two planes to allow correct alignment of the block



Applications:

  • Primary lead blocks on dinghies and catamarans
  • Control lines on larger yachts



Materials:

  • U.V. stabilized Acetal sheaves
  • Acetal ball bearings
  • Impact modified, fiber reinforced and U.V. stabilized Nylon cheeks
  • Grade 316 stainless steel load straps and head fittings



Specifications:
Sheave Ø: 30mm(1-3/16")
Max. Rope Ø: 8mm(5/16")
M.W.L.: 300kg(660lbs)
B. L.: 750kg(1,650lbs)
Weight: 28g(1.0oz)
