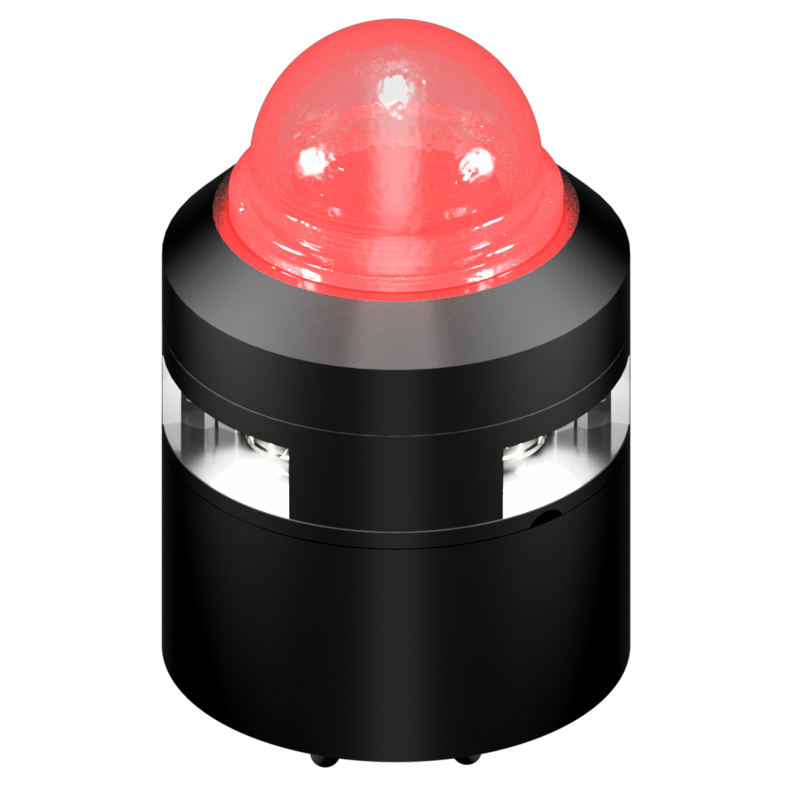

Lopolight Red Obstruction + 360 Degree White/Strobe Black
Lopolight Red Obstruction + 360 Degree White/Strobe Black
SKU:LOP-301-411+200-012G2S-B
Out of stock
Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues. Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant, compact and precise solution with good value for money.
Product Features
Hemispherical Red Obstruction light 15cd/3nm 2nm White 360¡ (anchor) with strobe function On aluminium base 400-034 (CS/CD) M20 and M16 cable glands For 4.5 (5/32") to 13mm (1/2") cables Hemispherical Red Obstruction light 15cd/3nm 2nm White 360¡ (anchor) with strobe function On aluminium base 400-034 (CS/CD) M20 and M16 cable glands For 4.5 (5/32") to 13mm (1/2") cables
Product Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Product Specifications
Attribute | Value |
---|---|
Approved to | IEC 60945 |
Mounting | Horizontal |
EAN | 5704438013759 |
UPC Code | 879343013752 |
Stock status | Made to order |
Min. feed wire gauge | 0.5mm2 AWG22 |
Light Color | Red |
Intensity | >15cd |
Visibility | 3nm |
Materials | Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
IP rating | IP68 |
Connection | Plug connector |
Current consumption (mA @ 24VDC) | 111 |
Weight (Kg) | 1.4 Kg |
Dimensions metric | ¯92,5mm x 138,5mm |
Dimensions imperial | ¯3.6" x 5.4" |
Operating temperature | -25¡C to 55¡C |
Operating Voltage | 20-32VDC |
Power draw (W) | 2,7 |
Current consumption (mA @ 12VDC) | 0 |
Vessel size | All Sizes |
Weight (Oz) | 49.38 Oz |
