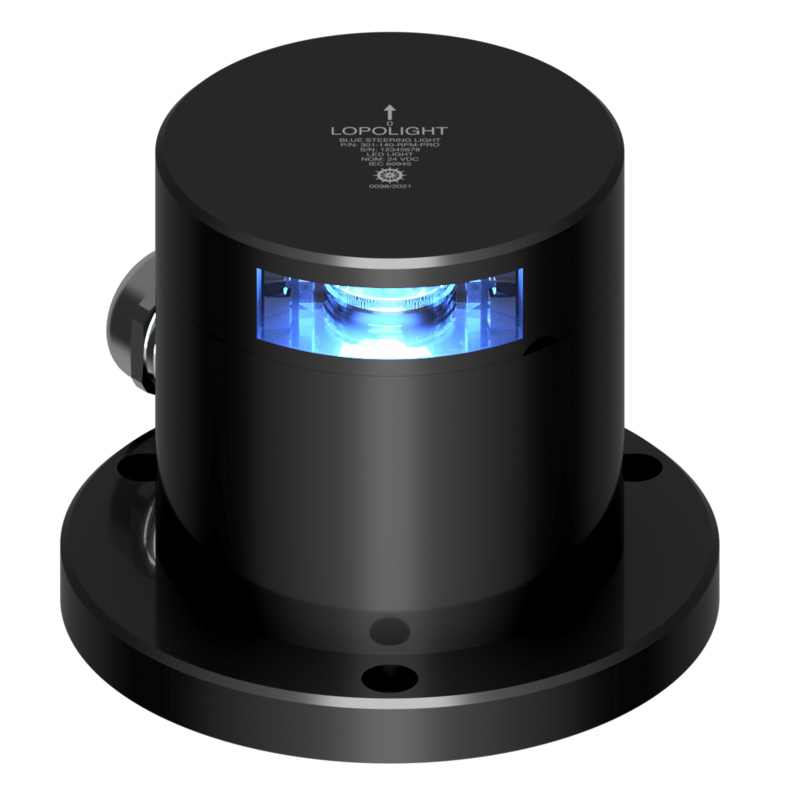

Lopolight 3nm 135 Degree Blue Black

Lopolight 3nm 135 Degree Blue Black

SKU:LOP-301-180-PRO

Out of stock

Regular price $1,423.07 USD
Regular price $1,423.07 USD Sale price $1,423.07 USD
Sale Sold out
Shipping calculated at checkout.

Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues. Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant, compact and precise solution with good value for money.

Product Features

Horizontally mounted on 400-037 alu base (IP68) Cable direction side incl. HDPE base plate Quality cable glands - 3 sizes included: 9-17mm (3/8"-11/16") cable diameter 7-13mm (1/4"-1/2") cable diameter 4.5-10mm (5/32" Horizontally mounted on 400-037 alu base (IP68) Cable direction side incl. HDPE base plate Quality cable glands - 3 sizes included: 9-17mm (3/8"-11/16") cable diameter 7-13mm (1/4"-1/2") cable diameter 4.5-10mm (5/32"

Product Certification

This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support

Product Specifications

Attribute Value
Approved to IEC 60945
Mounting Horizontal
EAN 5704438013681
UPC Code 879343013684
Stock status Made to order
Min. feed wire gauge 0.5mm2 AWG22
Light Color Blue
Intensity >15cd
Visibility 3nm
Materials Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
IP rating IP68
Connection Plug connector
Current consumption (mA @ 24VDC) 90
Weight (Kg) 1 Kg
Dimensions metric ¯92,5mm x 103,5mm
Dimensions imperial ¯3.6" x 4"
Operating temperature -25¡C to 55¡C
Operating Voltage 20-32VDC
Power draw (W) 2,2
Current consumption (mA @ 12VDC) 154
Vessel size All Sizes
Weight (Oz) 35.27 Oz

Product Literature

Brochure

Drawing of LOP-301-180-PRO
