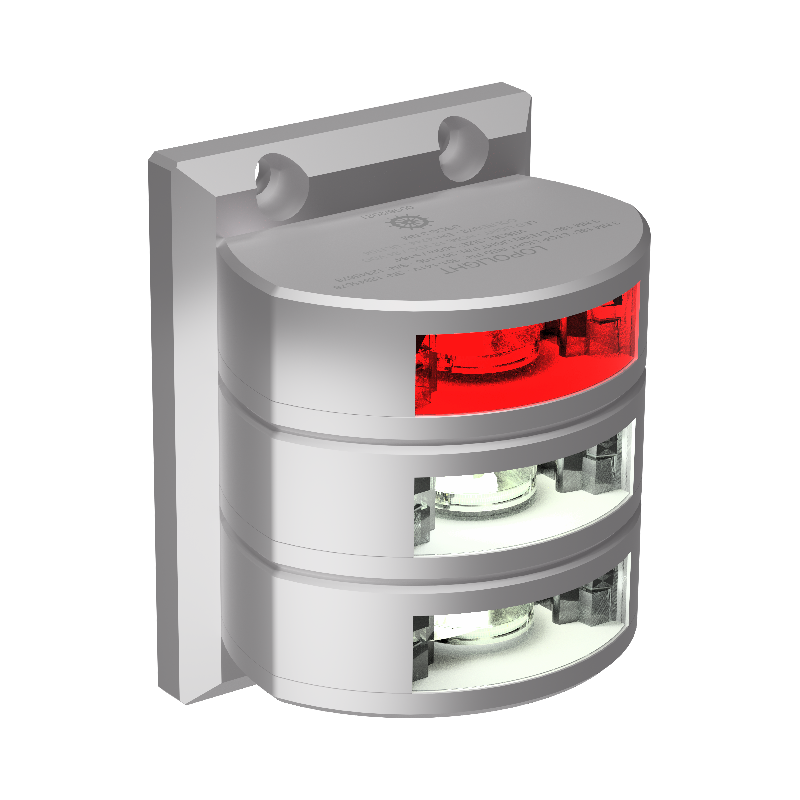

Lopolight 3nm 135 Degree Red Stop + 3nm Double Stern Vertical Mount Silv
Lopolight 3nm 135 Degree Red Stop + 3nm Double Stern Vertical Mount Silv
SKU:LOP-301-141V+301-106ST
Out of stock
Regular price
$5,396.94 USD
Regular price
$5,396.94 USD
Sale price
$5,396.94 USD
Unit price
/
per
Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues. Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant, compact and precise solution with good value for money.
Product Features
Vertically mounted, see drawing Vertically mounted, see drawing
Product Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Product Specifications
Attribute | Value |
---|---|
Approved to | IEC 60945 |
Mounting | Vertical |
EAN | 5704438013711 |
UPC Code | 879343013714 |
Stock status | Made to order |
Min. feed wire gauge | 0.5mm2 AWG22 |
Light Color | Red,White |
Intensity | >15cd |
Visibility | 3nm |
Materials | Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
IP rating | IP68 |
Connection | 0.7m cable |
Current consumption (mA @ 24VDC) | 60 |
Weight (Kg) | 1.35 Kg |
Dimensions metric | 113 x 72 x 86 |
Dimensions imperial | 4,4" x 2,8" x 3,3" |
Operating temperature | -25¡C to 55¡C |
Operating Voltage | 10-32VDC |
Power draw (W) | 2,5 |
Current consumption (mA @ 12VDC) | 180 |
Vessel size | Over 50M |
Weight (Oz) | 47.61 Oz |
