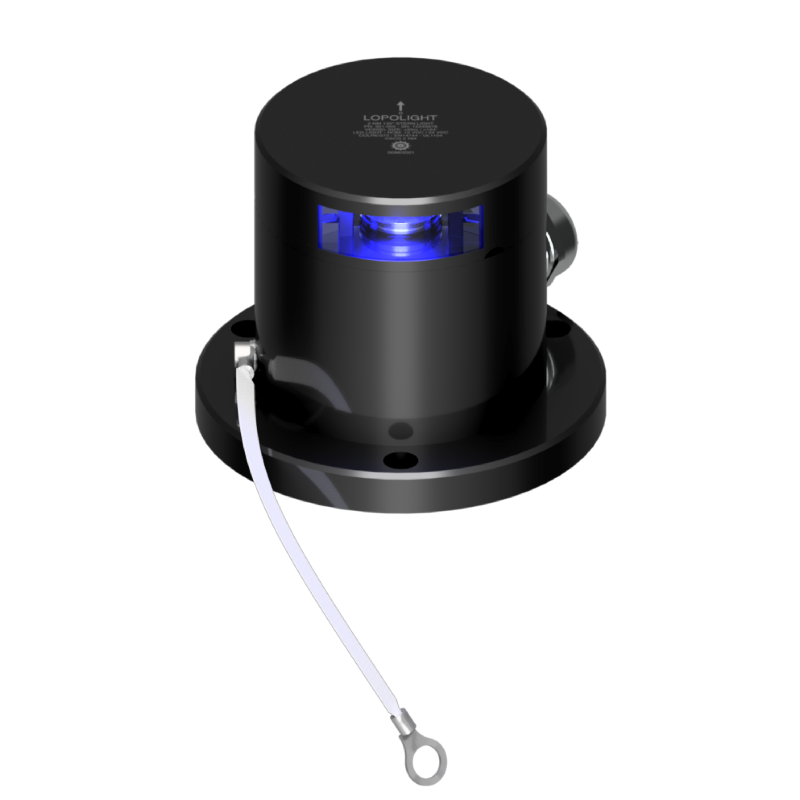

Lopolight Blue Steering Dimmable Via Rpm Control Atex/Ex
Lopolight Blue Steering Dimmable Via Rpm Control Atex/Ex
SKU:LOP-301-140-RPM-PRO-EX
Out of stock
Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues. Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant, compact and precise solution with good value for money.
Product Features
Certified for use in ATEX Zone 1 & 2Horizontally mounted on 400-037-B alu base (IP68)Cable direction sideincl. HDPE base plate Certified for use in ATEX Zone 1 & 2Horizontally mounted on 400-037-B alu base (IP68)Cable direction sideincl. HDPE base plate
Product Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Product Specifications
| Attribute | Value |
|---|---|
| Included In Package | 1 Navigation light,Installation guide |
| Materials | Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| IP rating | IP68 |
| Connection | Plug connector |
| Current consumption (mA @ 24VDC) | 81 |
| Weight (Kg) | 1 Kg |
| Dimensions metric | ¯92,5mm x 103,5mm |
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,BV,RINA,LR,MCA,ATEX 2014/34/EU,IEC 60079-0/7/18,UK Ex |
| Operating temperature | -25¡C to 55¡C |
| Operating Voltage | 10-32VDC |
| Power draw (W) | 3 |
| Current consumption (mA @ 12VDC) | 260 |
| Vessel size | All Sizes |
| Weight (Oz) | 35.27 Oz |
| Certification | This Navigation Light is certified by DNV, Dancert (Approved to: Ex eb mb IIB T5 Gb) and ExVeritas (PQAN/UKQAN/QAR), the Declaration of conformity and the certificates can be found on https://lopolight.com/support |
| Visibility | 1nm |
| Mounting | Horizontal |
| EAN | 5704438038370 |
| UPC Code | 879343038502 |
| Special Attributes | IEC Ex Zone 1 certified,ATEX Zone 1 certified |
| Min. feed wire gauge | 0.5mm2 AWG22 |
Couldn't load pickup availability
Product Literature
Drawing of LOP-301-140-RPM-PRO-EX
