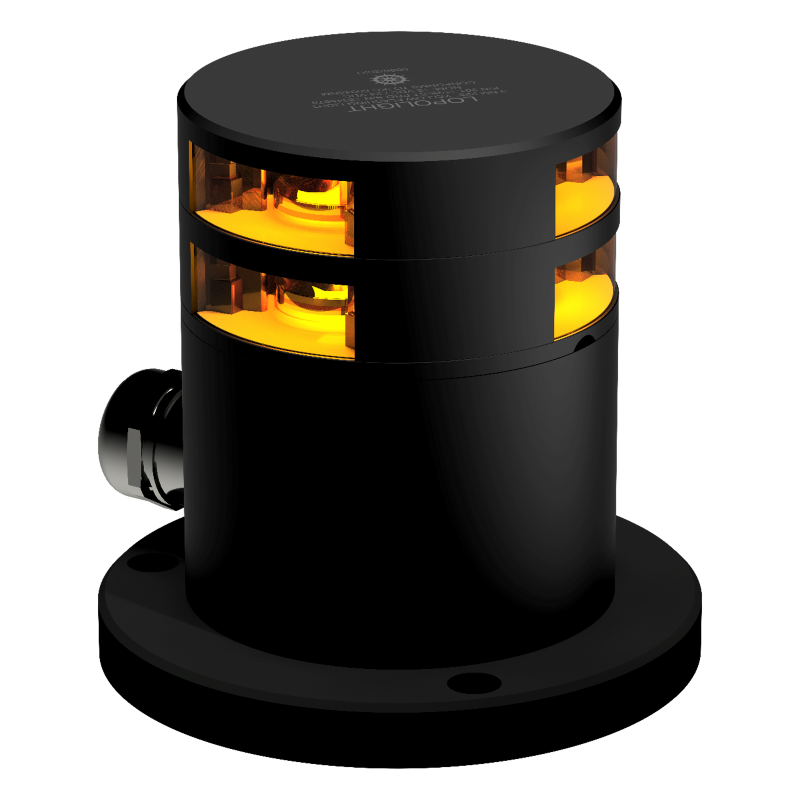

Lopolight 3nm 225 Degree Yellow Double Flash 1Hz Black
Lopolight 3nm 225 Degree Yellow Double Flash 1Hz Black
SKU:LOP-301-119S-ST-PRO
Out of stock
Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues. Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant, compact and precise solution with good value for money.
Product Features
Horizontally mounted on 400-037 alu base (IP68) Cable direction side incl. HDPE base plate Quality cable glands - 3 sizes included: 9-17mm (3/8"-11/16") cable diameter 7-13mm (1/4"-1/2") cable diameter 4.5-10mm (5/32" Horizontally mounted on 400-037 alu base (IP68) Cable direction side incl. HDPE base plate Quality cable glands - 3 sizes included: 9-17mm (3/8"-11/16") cable diameter 7-13mm (1/4"-1/2") cable diameter 4.5-10mm (5/32"
Product Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Product Specifications
| Attribute | Value |
|---|---|
| Approved to | IEC 60945 |
| Mounting | Horizontal |
| EAN | 5704438039643 |
| UPC Code | 879343039776 |
| Stock status | Made to order |
| Min. feed wire gauge | 0.5mm2 AWG22 |
| Light Color | Yellow |
| Intensity | >15cd |
| Visibility | 3nm |
| Materials | Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| IP rating | IP68 |
| Connection | Plug connector |
| Current consumption (mA @ 24VDC) | 176 |
| Weight (Kg) | 1.10 Kg |
| Dimensions metric | ¯92,5mm x 125,5mm |
| Dimensions imperial | ¯3.6" x 4.9" |
| Operating temperature | -25¡C to 55¡C |
| Operating Voltage | 10-32VDC |
| Power draw (W) | 4,2 |
| Current consumption (mA @ 12VDC) | 270 |
| Vessel size | All Sizes |
| Weight (Oz) | 38.62 Oz |
Couldn't load pickup availability
Product Literature
Drawing of LOP-301-119S-ST-PRO
