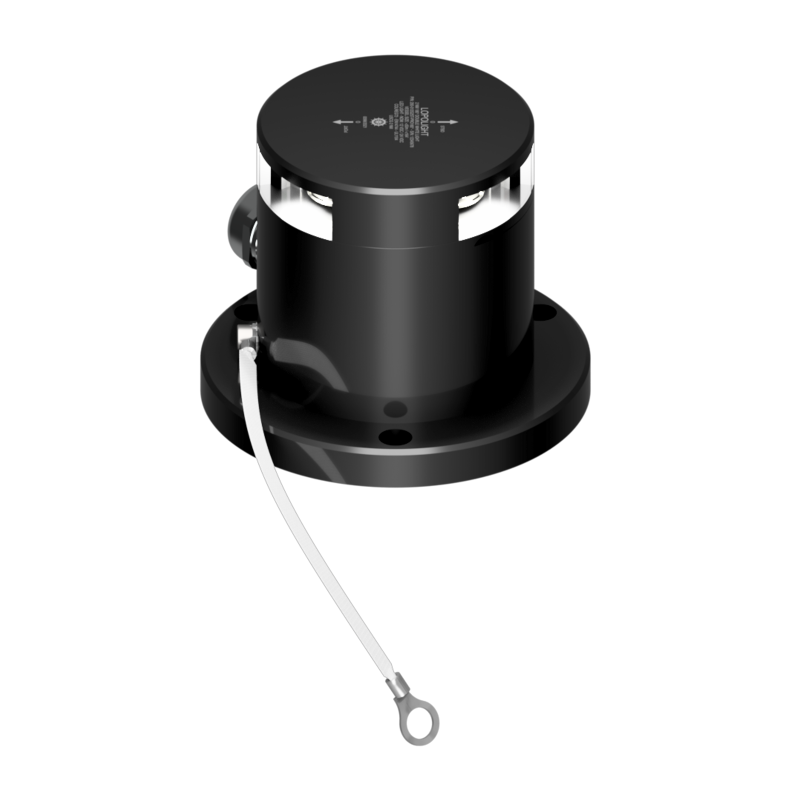

Lopolight 3nm 180 Degree White Single Ex Zone 1&2 Ice-Class
Lopolight 3nm 180 Degree White Single Ex Zone 1&2 Ice-Class
SKU:LOP-301-112-PRO-I-EX 180
Out of stock
Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues. Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant, compact and precise solution with good value for money.
Product Features
Certified for use in ATEX Zone 1 & 2Horizontally mounted on 400-037-B alu base (IP68)Cable direction sideincl. HDPE base plate Certified for use in ATEX Zone 1 & 2Horizontally mounted on 400-037-B alu base (IP68)Cable direction sideincl. HDPE base plate
Product Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Product Specifications
| Attribute | Value |
|---|---|
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,BV,RINA,LR,MCA,ATEX 2014/34/EU,IEC 60079-0/7/18,UK Ex |
| Operating temperature | -25¡C to 55¡C |
| Operating Voltage | 10-32VDC |
| Power draw (W) | 3 |
| Current consumption (mA @ 12VDC) | 240 |
| Vessel size | Over 50M |
| Weight (Oz) | 40.21 Oz |
| Light Color | White |
| Intensity | >15cd |
| Visibility | 3nm |
| Mounting | Horizontal |
| EAN | 5704438041981 |
| UPC Code | 879343042110 |
| Special Attributes | Ice-class Defroster included,IEC Ex Zone 1 certified,ATEX Zone 1 certified |
| Min. feed wire gauge | 0.5mm2 AWG22 |
| Dimensions metric | ¯92,5mm x 103,5mm |
| Dimensions imperial | ¯3.6" x 4" |
| Included In Package | 1 Navigation light,Installation guide |
| Materials | Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| IP rating | IP68 |
| Connection | Plug connector |
| Current consumption (mA @ 24VDC) | 122 |
| Weight (Kg) | 1.14 Kg |
