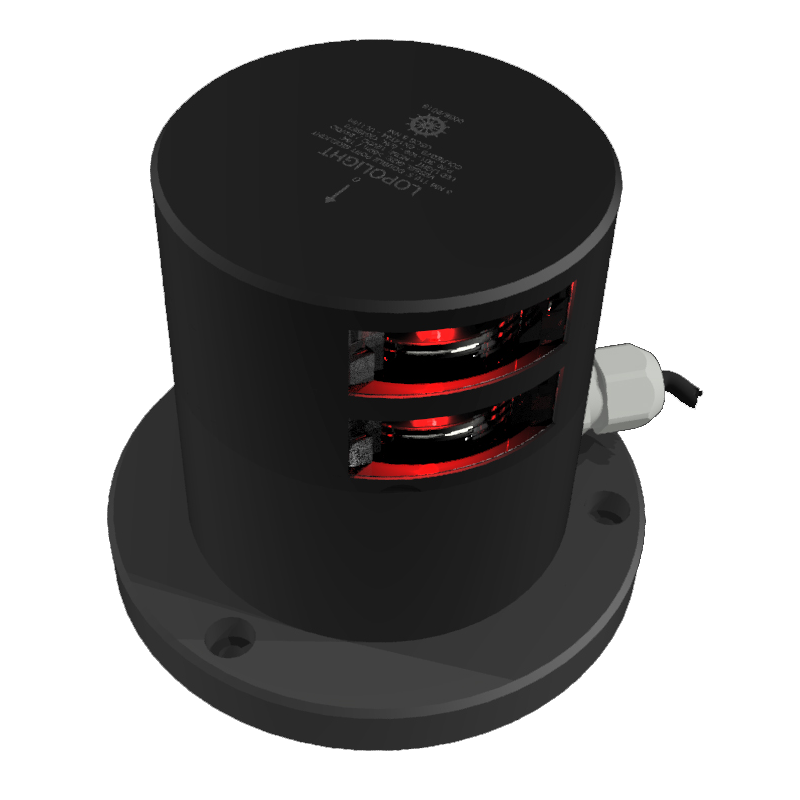

Lopolight 3nm Port Sidelight Double Horizontal Mount
Lopolight 3nm Port Sidelight Double Horizontal Mount
SKU:LOP-301-109ST-RPM-I-NSN
Out of stock
Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues. Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant, compact and precise solution with good value for money.
Product Features
Dimmable, Ice-class heater built-in Black hard coat anodized Special fitting for retro-fit to US Navy legacy installation 24VDC Dimmable, Ice-class heater built-in Black hard coat anodized Special fitting for retro-fit to US Navy legacy installation 24VDC
Product Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Product Specifications
| Attribute | Value |
|---|---|
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
| Mounting | Horizontal |
| EAN | 5704438014121 |
| UPC Code | 879343014124 |
| Special Attributes | Ice-class Defroster included,Dimmable (NAVY/SAR only) |
| Vessel size | Over 50M |
| Weight (Oz) | 65.25 Oz |
| Light Color | Red |
| Intensity | >15cd |
| Visibility | 3nm |
| Materials | Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| IP rating | IP68 |
| Connection | Plug connector |
| Stock status | Made to order |
| Min. feed wire gauge | 1.5mm2 AWG18 |
| Dimensions metric | ¯92,5mm x 125,5mm |
| Dimensions imperial | ¯3.6" x 4.9" |
| Operating temperature | -60¡C to 55¡C |
| Operating Voltage | 20-32VDC |
| Power draw (W) | 2,2 |
| Current consumption (mA @ 12VDC) | 153 |
| Current consumption (mA @ 24VDC) | 92 |
| Weight (Kg) | 1.85 Kg |
