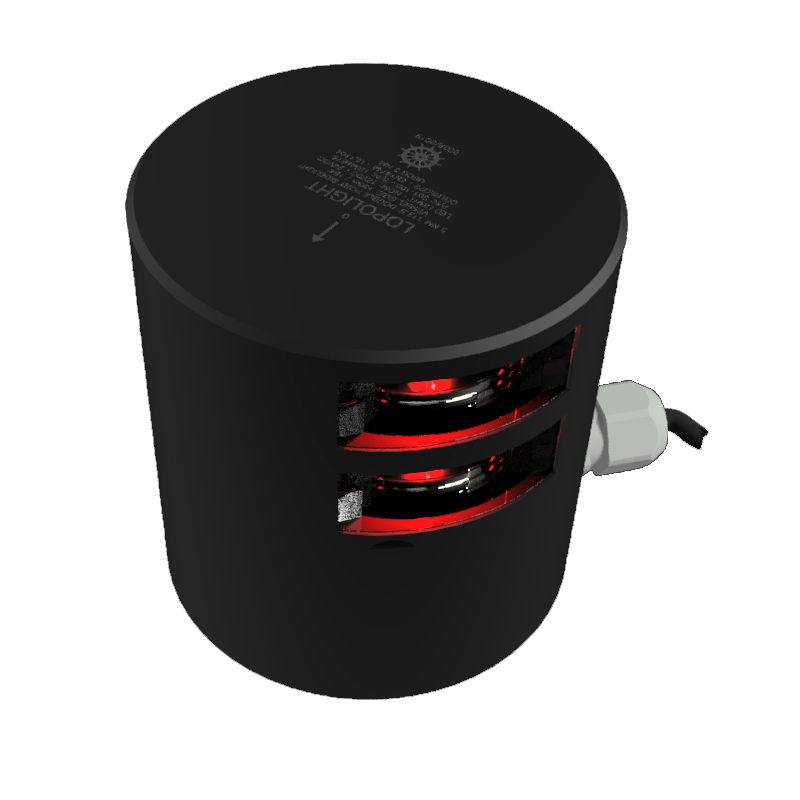

Lopolight 3nm Double Port Black Horizontal Mount Dimmable 2.5m
Lopolight 3nm Double Port Black Horizontal Mount Dimmable 2.5m
SKU:LOP-301-109ST-B-NPC
Out of stock
Regular price
$2,715.60 USD
Regular price
$0.00 USD
Sale price
$2,715.60 USD
Unit price
/
per
Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues. Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant, compact and precise solution with good value for money.
Product Features
NSN 6220-22-621-4784 Eqivalent RS485 Controllable light NSN 6220-22-621-4784 Eqivalent RS485 Controllable light
Product Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Product Specifications
Attribute | Value |
---|---|
Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
Mounting | Horizontal |
EAN | 5704438014169 |
UPC Code | 879343014162 |
Stock status | Made to order |
Min. feed wire gauge | 0.5mm2 AWG22 |
Light Color | Red |
Intensity | >15cd |
Visibility | 3nm |
Materials | Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
IP rating | IP68 |
Connection | Plug connector |
Current consumption (mA @ 24VDC) | 92 |
Weight (Kg) | 1 Kg |
Dimensions metric | ¯92,5mm x 125,5mm |
Dimensions imperial | ¯3.6" x 4.9" |
Operating temperature | -25¡C to 55¡C |
Operating Voltage | 10-32VDC |
Power draw (W) | 2,2 |
Current consumption (mA @ 12VDC) | 153 |
Vessel size | Over 50M |
Weight (Oz) | 35.27 Oz |
