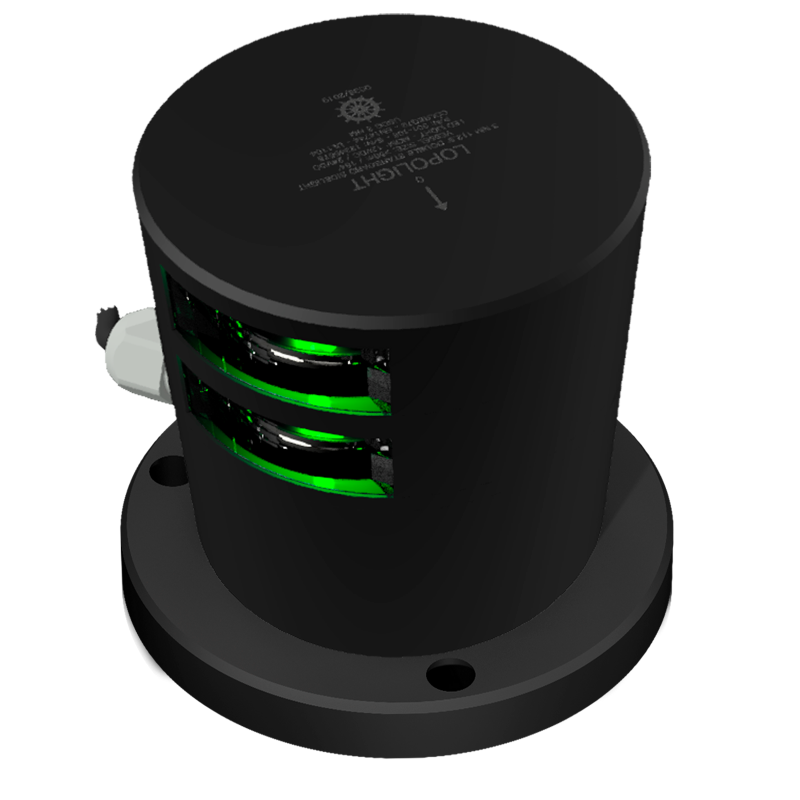

Lopolight 3nm Starboard Double Black
Lopolight 3nm Starboard Double Black
SKU:LOP-301-108ST-PRO
Low stock: 2 left
Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues. Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant, compact and precise solution with good value for money.
Product Features
Horizontally mounted on 400-037-B alu base (IP68) Cable direction side incl. HDPE base plate Quality cable glands - 3 sizes included: 9-17mm (3/8"-11/16") cable diameter 7-13mm (1/4"-1/2") cable diameter 4.5-10mm (5/32 Horizontally mounted on 400-037-B alu base (IP68) Cable direction side incl. HDPE base plate Quality cable glands - 3 sizes included: 9-17mm (3/8"-11/16") cable diameter 7-13mm (1/4"-1/2") cable diameter 4.5-10mm (5/32
Product Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Product Specifications
Attribute | Value |
---|---|
Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
Operating temperature | -25¡C to 55¡C |
Operating Voltage | 10-32VDC |
Power draw (W) | 2,6 |
Current consumption (mA @ 12VDC) | 183 |
Vessel size | Over 50M |
Weight (Oz) | 57.14 Oz |
Light Color | Green |
Intensity | >15cd |
Visibility | 3nm |
Mounting | Horizontal |
EAN | 5704438014275 |
UPC Code | 879343014278 |
Stock status | Usually in stock |
Min. feed wire gauge | 0.5mm2 AWG22 |
Dimensions metric | ¯92,5mm x 125,5mm |
Dimensions imperial | ¯3.6" x 4.9" |
Included In Package | 1 Navigation light,2 Mounting screws (M6 * 8 mm),Installation guide |
Materials | Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
IP rating | IP68 |
Connection | Plug connector |
Current consumption (mA @ 24VDC) | 110 |
Weight (Kg) | 1.62 Kg |
