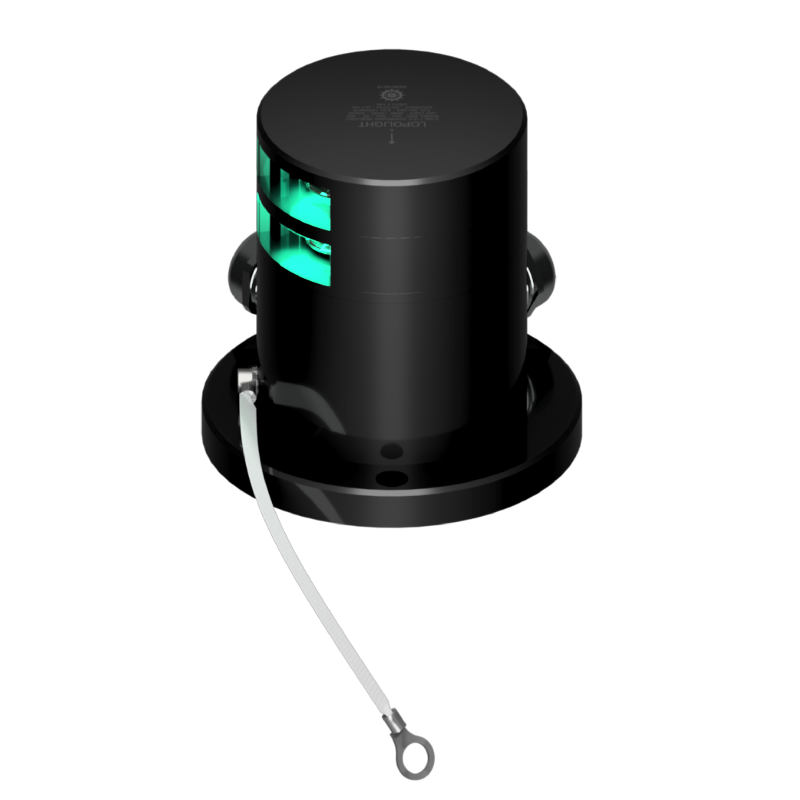

Lopolight 3nm Double Starboard Black Horizontal Mount Dimmable
Lopolight 3nm Double Starboard Black Horizontal Mount Dimmable
SKU:LOP-301-108ST-B-RPM
Out of stock
Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues. Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant, compact and precise solution with good value for money.
Product Features
Dimmable / monitored / controllable 2-lead connection for power and control 24VDC Mounted on aluminium base 2CS/2CD Delivered with black PE base plate Dimmable / monitored / controllable 2-lead connection for power and control 24VDC Mounted on aluminium base 2CS/2CD Delivered with black PE base plate
Product Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Product Specifications
| Attribute | Value |
|---|---|
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
| Mounting | Horizontal |
| EAN | 5704438014299 |
| UPC Code | 879343014292 |
| Special Attributes | Dimmable (NAVY/SAR only) |
| Vessel size | Over 50M |
| Weight (Oz) | 59.96 Oz |
| Light Color | Green |
| Intensity | >15cd |
| Visibility | 3nm |
| Materials | Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| IP rating | IP68 |
| Connection | Plug connector |
| Stock status | Made to order |
| Min. feed wire gauge | 0.5mm2 AWG22 |
| Dimensions metric | ¯92,5mm x 125,5mm |
| Dimensions imperial | ¯3.6" x 4.9" |
| Operating temperature | -25¡C to 55¡C |
| Operating Voltage | 10-32VDC |
| Power draw (W) | 2,6 |
| Current consumption (mA @ 12VDC) | 183 |
| Current consumption (mA @ 24VDC) | 110 |
| Weight (Kg) | 1.7 Kg |
