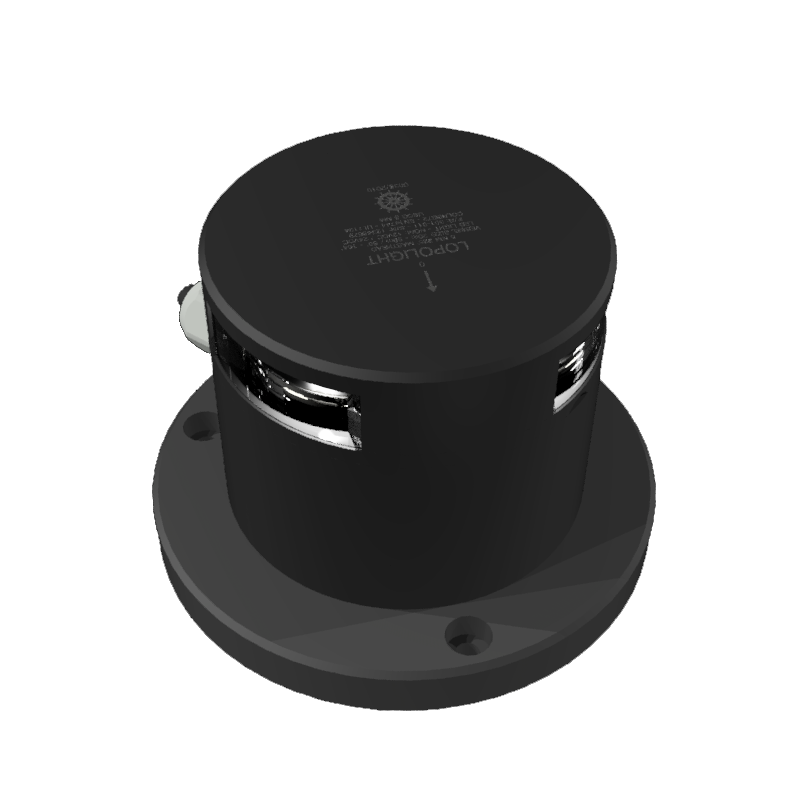

Lopolight 5nm Masthead Horizontal Pro Mount
Lopolight 5nm Masthead Horizontal Pro Mount
SKU:LOP-301-011KL-PRO
Out of stock
Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues. Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant, compact and precise solution with good value for money.
Product Features
Horizontally mounted on POM base (IP68) Cable direction sideincl. HDPE base plate Quality cable glands - 2 sizes included: 7-13mm (1/4"-1/2") cable diameter 4.5-10mm (5/32"-3/8") cable diameter Horizontally mounted on POM base (IP68) Cable direction sideincl. HDPE base plate Quality cable glands - 2 sizes included: 7-13mm (1/4"-1/2") cable diameter 4.5-10mm (5/32"-3/8") cable diameter
Product Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Product Specifications
| Attribute | Value |
|---|---|
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
| Mounting | Horizontal |
| EAN | 5704438013087 |
| UPC Code | 879343013080 |
| Stock status | Usually in stock |
| Min. feed wire gauge | 0.5mm2 AWG22 |
| Light Color | White |
| Intensity | >52cd |
| Visibility | 5nm |
| Materials | Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| IP rating | IP68 |
| Connection | Plug connector |
| Current consumption (mA @ 24VDC) | 170 |
| Weight (Kg) | 1.02 Kg |
| Dimensions metric | ¯92,5mm x 96,5mm |
| Dimensions imperial | ¯3.6" x 3.8" |
| Operating temperature | -25¡C to 55¡C |
| Operating Voltage | 10-32VDC |
| Power draw (W) | 4,1 |
| Current consumption (mA @ 12VDC) | 320 |
| Vessel size | 20-50M |
| Weight (Oz) | 35.98 Oz |
