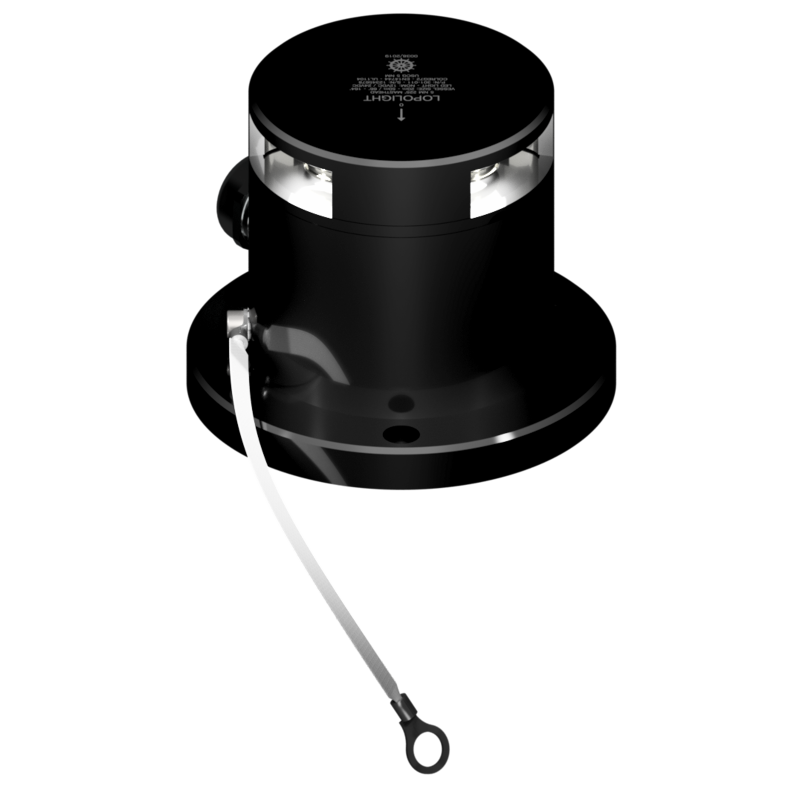

Lopolight 5nm 225 Degree Masthead Dimmable Black

Lopolight 5nm 225 Degree Masthead Dimmable Black

SKU:LOP-301-011KL-B-RPM

Out of stock

Regular price $2,390.96 USD
Regular price $0.00 USD Sale price $2,390.96 USD
Sale Sold out
Shipping calculated at checkout.

Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues. Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant, compact and precise solution with good value for money.

Product Features

Dimmable / monitored / controllable 2-lead connection for power and control 24VDC Dimmable / monitored / controllable 2-lead connection for power and control 24VDC

Product Certification

This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support

Product Specifications

Attribute Value
Approved to COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Operating temperature -25¡C to 55¡C
Operating Voltage 10-32VDC
Power draw (W) 4,1
Current consumption (mA @ 12VDC) 320
Current consumption (mA @ 24VDC) 170
Weight (Kg) 0.99 Kg
Light Color White
Intensity >52cd
Visibility 5nm
Mounting Horizontal
EAN 5704438014701
UPC Code 879343014704
Special Attributes Dimmable (NAVY/SAR only)
Vessel size 20-50M
Weight (Oz) 34.92 Oz
Dimensions metric ¯92,5mm x 74,5mm
Dimensions imperial ¯3.6" x 2.9"
Included In Package 1 Navigation light,2 Mounting screws (M6 * 8 mm),Installation guide
Materials Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
IP rating IP68
Connection Plug connector
Stock status Made to order
Min. feed wire gauge 0.5mm2 AWG22

Manufacturers Product Page
