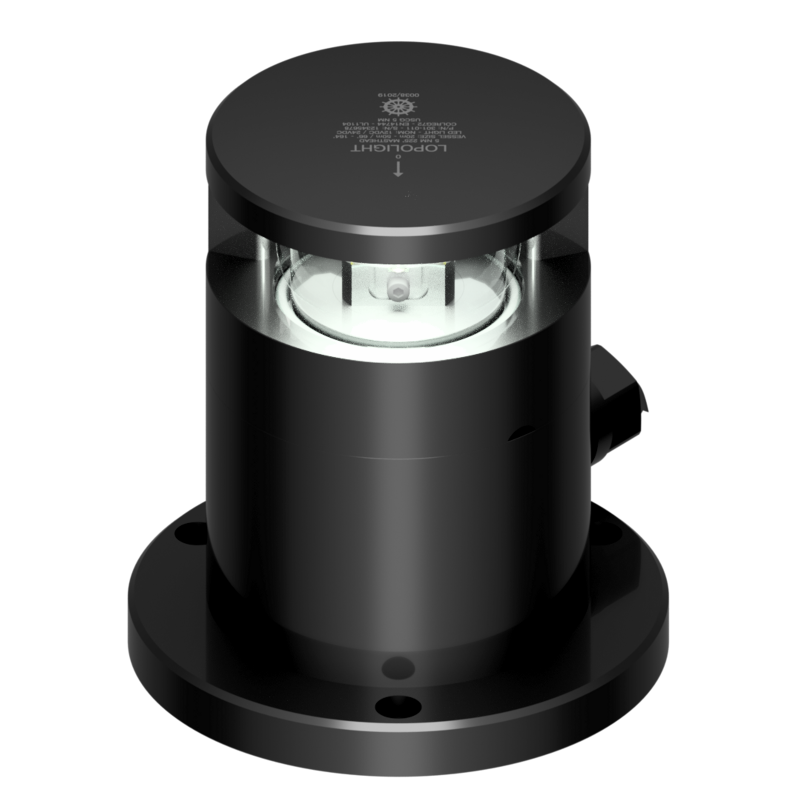

Lopolight 6nm Masthead Black

Lopolight 6nm Masthead Black

SKU:LOP-300-136-PRO

Low stock: 1 left

Regular price $1,491.69 USD
Regular price $1,491.69 USD Sale price $1,491.69 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues. Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant, compact and precise solution with good value for money.

Product Features

Horizontally mounted on 400-037 alu base (IP68) Cable direction side incl. HDPE base plate Quality cable glands - 3 sizes included: 9-17mm (3/8"-11/16") cable diameter 7-13mm (1/4"-1/2") cable diameter 4.5-10mm (5/32" Horizontally mounted on 400-037 alu base (IP68) Cable direction side incl. HDPE base plate Quality cable glands - 3 sizes included: 9-17mm (3/8"-11/16") cable diameter 7-13mm (1/4"-1/2") cable diameter 4.5-10mm (5/32"

Product Certification

This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support

Product Specifications

Attribute Value
Approved to COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Mounting Horizontal
EAN 5704438004795
UPC Code 879343004798
Current consumption (mA @ 24VDC) 580
Weight (Kg) 1.49 Kg
Light Color White
Intensity >94cd
Visibility 6nm
Materials Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
IP rating IP68
Connection Plug connector
Vessel size Over 50M
Weight (Oz) 52.55 Oz
Dimensions metric ¯92,5mm x 126,8mm
Dimensions imperial ¯3.6" x 4.9"
Operating temperature -25¡C to 55¡C
Operating Voltage 20-32VDC
Power draw (W) 13
Current consumption (mA @ 12VDC) 0
Min. feed wire gauge 0.5mm2 AWG22

Product Literature

Brochure

Drawing of LOP-300-136-PRO

Manufacturers Product Page
