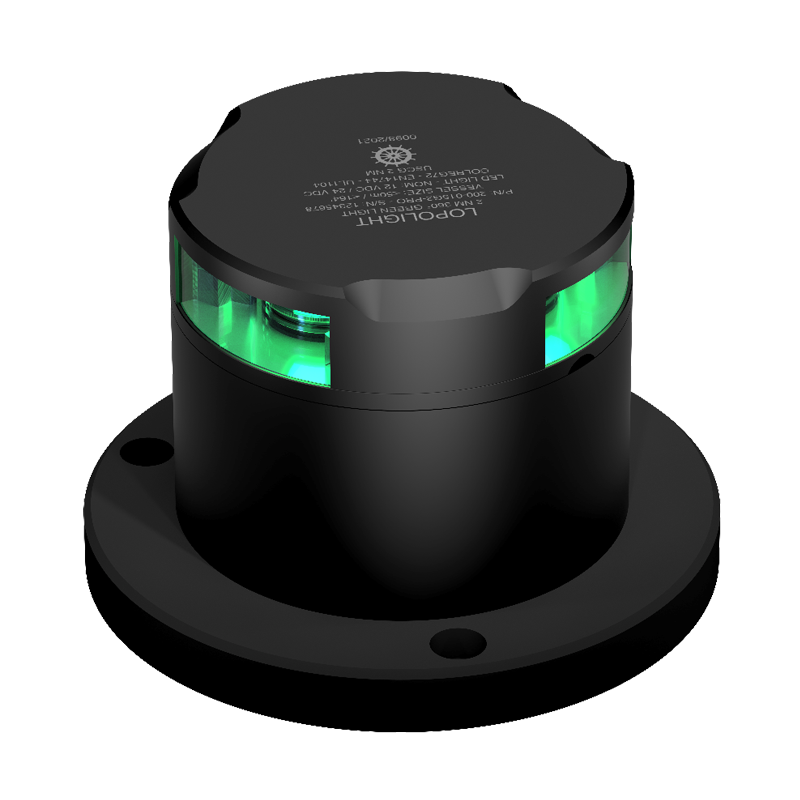

Lopolight 3nm 360 Degree Green Black Ice-Class
Lopolight 3nm 360 Degree Green Black Ice-Class
SKU:LOP-300-115G2-PRO-I
Low stock: 2 left
Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues. Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant, compact and precise solution with good value for money.
Product Features
Built-in De-icing function Horizontally mounted on 400-037 alu base (IP68) Cable direction side incl. HDPE base plate... Built-in De-icing function Horizontally mounted on 400-037 alu base (IP68) Cable direction side incl. HDPE base plate...
Product Certification
This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support
Product Specifications
| Attribute | Value |
|---|---|
| Approved to | COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR |
| Mounting | Horizontal |
| EAN | 5704438019317 |
| UPC Code | 879343019440 |
| Stock status | Made to order |
| Min. feed wire gauge | 1.5mm2 AWG18 |
| Light Color | Green |
| Intensity | >15cd |
| Visibility | 3nm |
| Materials | Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| IP rating | IP68 |
| Connection | Plug connector |
| Current consumption (mA @ 24VDC) | 176 |
| Weight (Kg) | 1.09 Kg |
| Dimensions metric | ¯92,5mm x 89,5mm |
| Dimensions imperial | ¯3.6" x 3.5" |
| Operating temperature | -60¡C to 55¡C |
| Operating Voltage | 20-32VDC |
| Power draw (W) | 4,2 |
| Current consumption (mA @ 12VDC) | 182 |
| Vessel size | Over 50M |
| Weight (Oz) | 38.44 Oz |
Couldn't load pickup availability
Product Literature
Drawing of LOP-300-115G2-PRO-I
