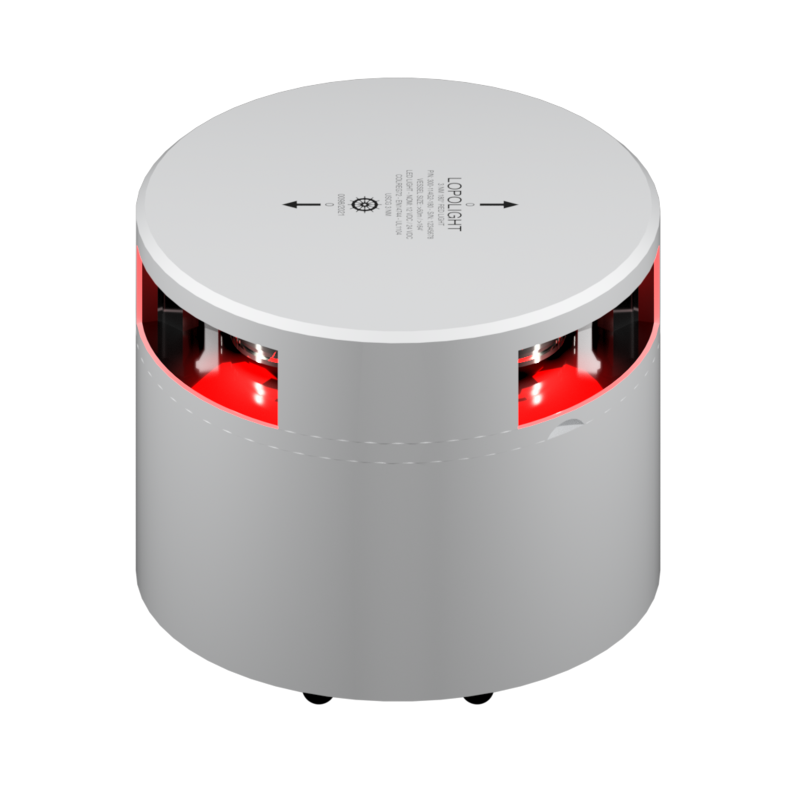

Lopolight 3nm 180 Degree Red Silver

Lopolight 3nm 180 Degree Red Silver

SKU:LOP-300-114G2-180

Out of stock

Regular price $1,174.15 USD
Regular price $1,174.15 USD Sale price $1,174.15 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Lopolight started out back in 2004, offering many solutions and neat combinations for all size boats and yachts. The tradition continues. Lopolight offers a full range of navigation lights dedicated for boats and yachts, resulting in an elegant, compact and precise solution with good value for money.

Product Features

3nm 180¡ Red, silver anodized 3nm 180¡ Red, silver anodized

Product Certification

This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support

Product Specifications

Attribute Value
Approved to COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Operating temperature -25¡C to 55¡C
Operating Voltage 10-32VDC
Power draw (W) 2,5
Current consumption (mA @ 12VDC) 210
Vessel size Over 50M
Weight (Oz) 35.98 Oz
Light Color Red
Intensity >15cd
Visibility 3nm
Mounting Horizontal
EAN 5704438019478
UPC Code 879343019600
Stock status Made to order
Min. feed wire gauge 0.5mm2 AWG22
Dimensions metric ¯92,5mm x 74,5mm
Dimensions imperial ¯3.6" x 2.9"
Included In Package 1 Navigation light,2 Mounting screws (M6 * 8 mm),Installation guide
Materials Silver anodized aluminum 25µ, A4 stainless steel screws
IP rating IP68
Connection Plug connector
Current consumption (mA @ 24VDC) 100
Weight (Kg) 1.02 Kg

Drawing of LOP-300-114G2-180

Manufacturers Product Page
