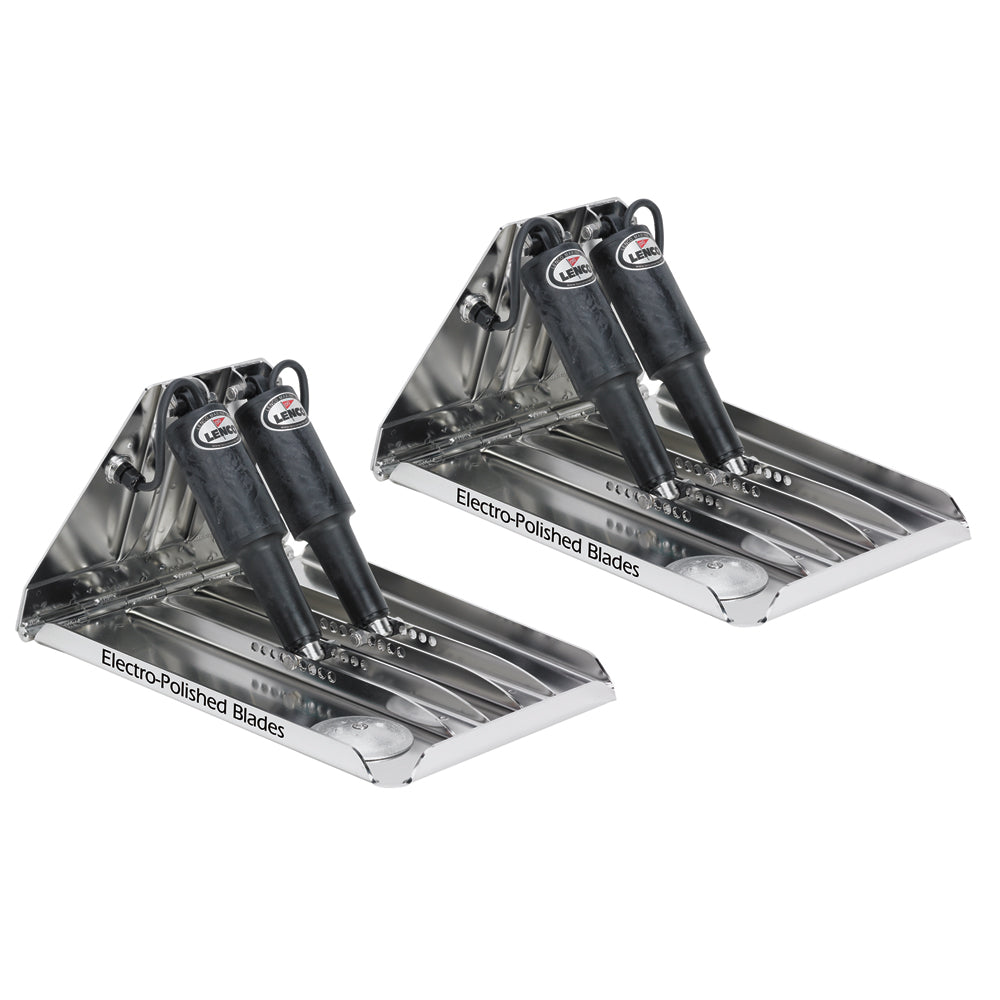

19" x 14" Extreme Duty Performance Trim Tab Kit w/o Switch Kit- 12V- Dual Actuator Kit

Lenco Electric Extreme Duty Polished Blade Trim Tab Kits feature fast response actuators for precise control. They are fully submersible and feature Plug & Play Deutsch connections. Blades are Electro-Polished 10 Gauge - 304 SS with 1" turned up edges, an 85 degree inside taper and 3/8"diameter hinge pin. Extreme Duty actuators with 3/8" SS bolts. Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets and 3.75" sacrificial anodes.

Kit Contents:

• 2 each of stainless steel trim tab planes
• 4 each of #15056-001XD extreme duty actuators with 6" lead & Deutsch plugs
• Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets and 3.75" sacrificial anodes.

The following to be supplied by customer:

• Boat mounting hardware
• Actuator extension harnesses (2 for single actuator application or 4 for dual)
  will be required. Order the lengths of your choice. See the Lenco
  Accessories section.

Specifications:

• Suggested Boat Length: 23' to 45'
• Length of Tab: 19"
• Width of Tab: 14"
• Minimum Transom Height: 10.5"
• Blades: 10 Gauge Stainless Steel
• Finish: Electro-Polished
• Switch Kit: Sold Separately
• Class: Fuel Efficient
• Compliance: CE Certified
• Compatibility: Any Boat
• Switch Required: 15071-001
• Actuators: 12-volt
