12" x 12" Heavy Duty Performance Trim Tab Kit w/o Switch Kit -12V

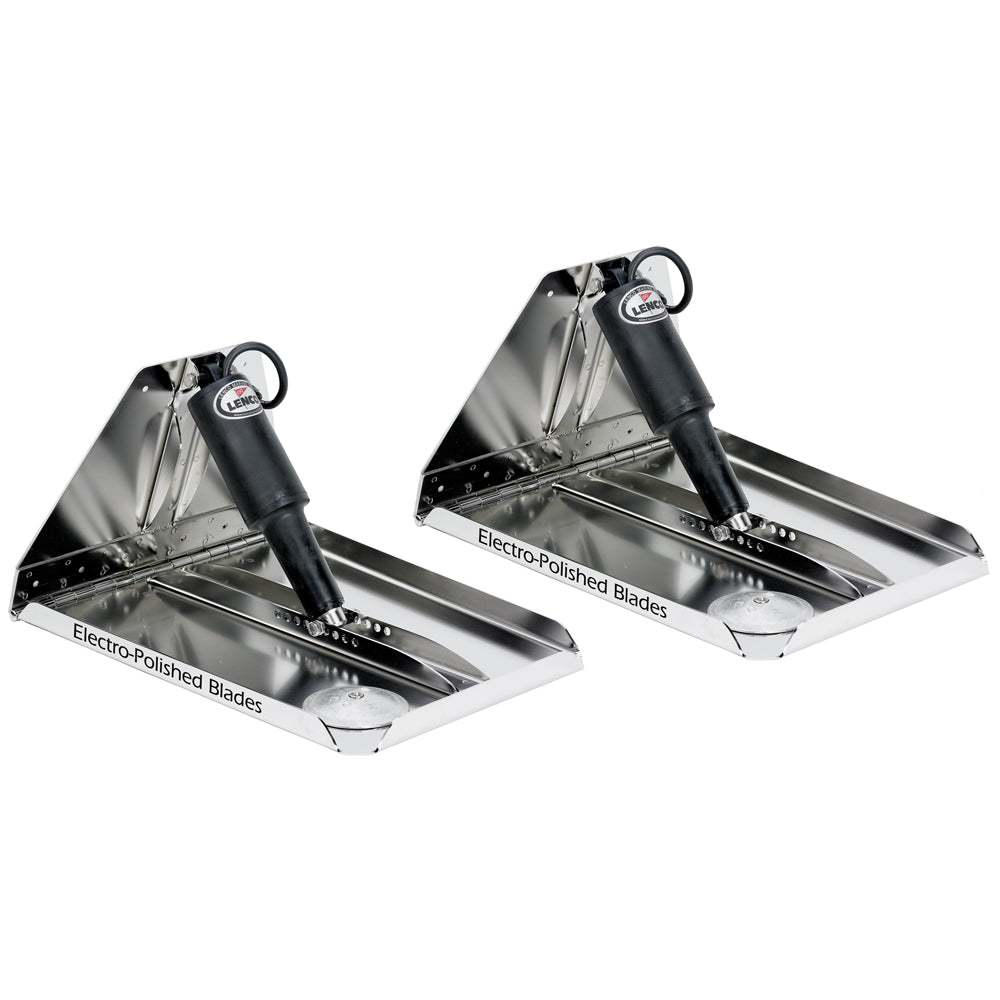

Lenco Electric Heavy Duty Polished Blade Trim Tab Kits are supplied with electric actuators for precise control. Fully submersible with all Plug & Play Deutsch connections. Blades are Electro-Polished 12 gauge - 304 SS with 1" turned up edges, 85 degree inside taper and 1/4" diameter hinge pin. Kits equipped with Extreme Duty actuators with 5/16" SS bolts. Kit is factory assembled with full transom back plate, mechanical strain relief cable seal, adjustable C-channel mounting brackets and 3.75" sacrificial anodes. .

Kit Contents:

• 2 each of 12-gauge stainless steel Electro-Polished trim tab blades
• 2 each of #15055-001 XD extreme duty actuators with 6' lead and Deutsch plugs
• 2 each of #30133-103  20' actuator extension wiring harnesses
• 1 each of the Lenco owner’s / installation manual
• Boat-mounting hardware supplied by customer

Specifications:

• Suggested Boat Length: 18' to 34'
• Length of Tab: 12"
• Width of Tab: 12"
• Minimum Transom Height: 10.5"
• Blades: 12 Gauge Stainless Steel
• Finish: Electro-Polished
• Switch Kit: Sold Separately
• Class: Fuel Efficient
• Compliance: CE Certified
• Compatibility: Any Boat
• Switch Required: 15069-001 or 15070-001
• Actuators: 12-volt
