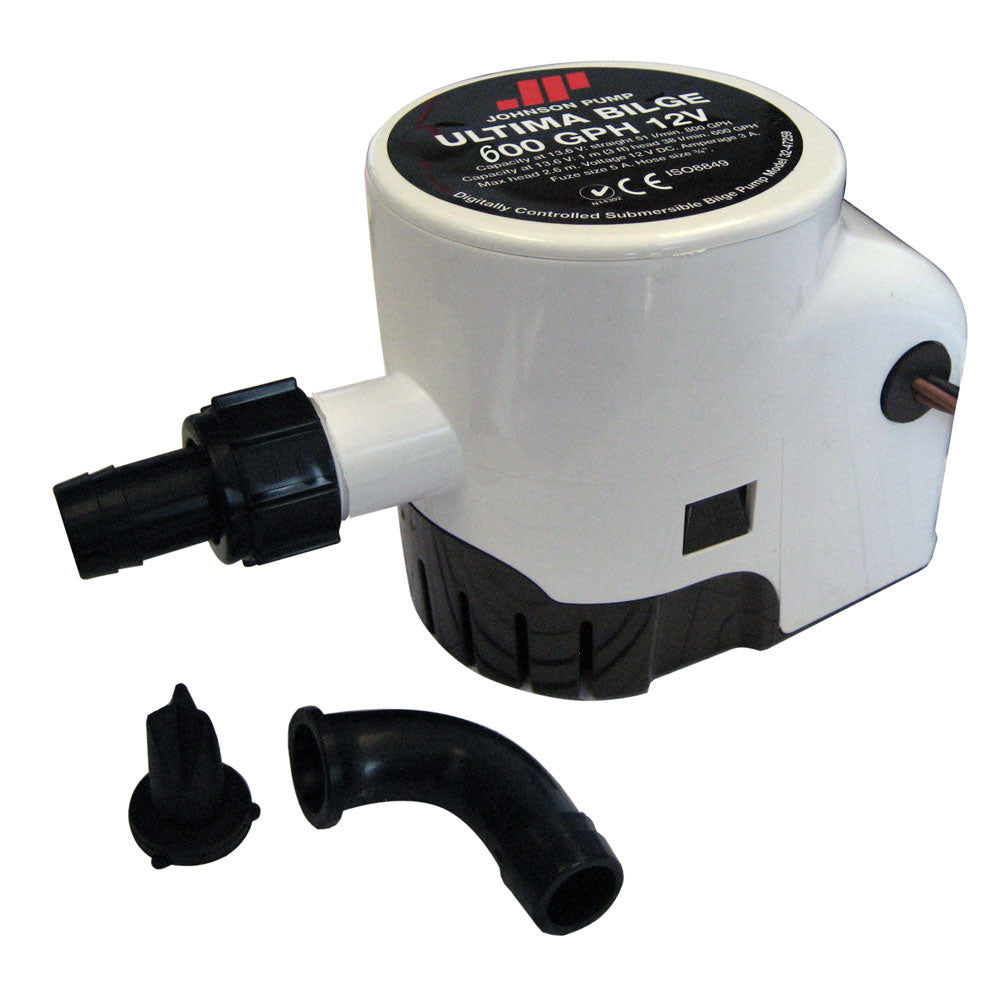

Ultima Bilge Pump
UltimaBilge Pumps are the latest addition to the Johnson Pump brand lineup. Integration of the Ultima "field effect" sensing technology into the bilge pump body creates a sleek, reliable and compact unit with integrated switch ready to install and run for years and years of unerring service. Available in 600-800-1000-1250 GPH versions. Voltage 12 V DC. For UltimaBilge 600 GPH-1000 GPH, we have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. These pumps will be delivered including both a straight and a 90 degree smooth elbow Dura-Port.

All version are delivered with a removable check valve.

The Ultima Bilge pumps may be manually operated via the Johnson Pump bilge control panel.
CE-Approved

Features:

• Compact, all-in-one unit

• Integrated Ultima Switch sensing right into the pump body

• No Mercury

• Removable clip on basket design

• Removable impeller cover allows for easy clean out

• 3-wire device can be run in auto or manual override mode

• No tools needed for maintenance

• Extremely energy efficient

• Water-cooled motor for long service intervals

• Meets the international standard, ISO 8849 marine

• Pump Body: ABS

• Shaft Seal: Lip Seal

• Shaft: Stainless steel

• Voltage: 12 V DC

• Capacity 3 ft (0.9 m) head (13.6 V): 32 l/min - 500 GPH

• Capacity straight (13.6 V): 38 l/min - 600 GPH

• Amperage: 2.5 A

• Fuse Size: 5 A

• Connection: 3/4"

• Length:142 mm - 6"

• Width:82 mm - 3.2"

• Height:105 mm - 4.1"

• Weight:0.66 kg - 23.3 oz.
