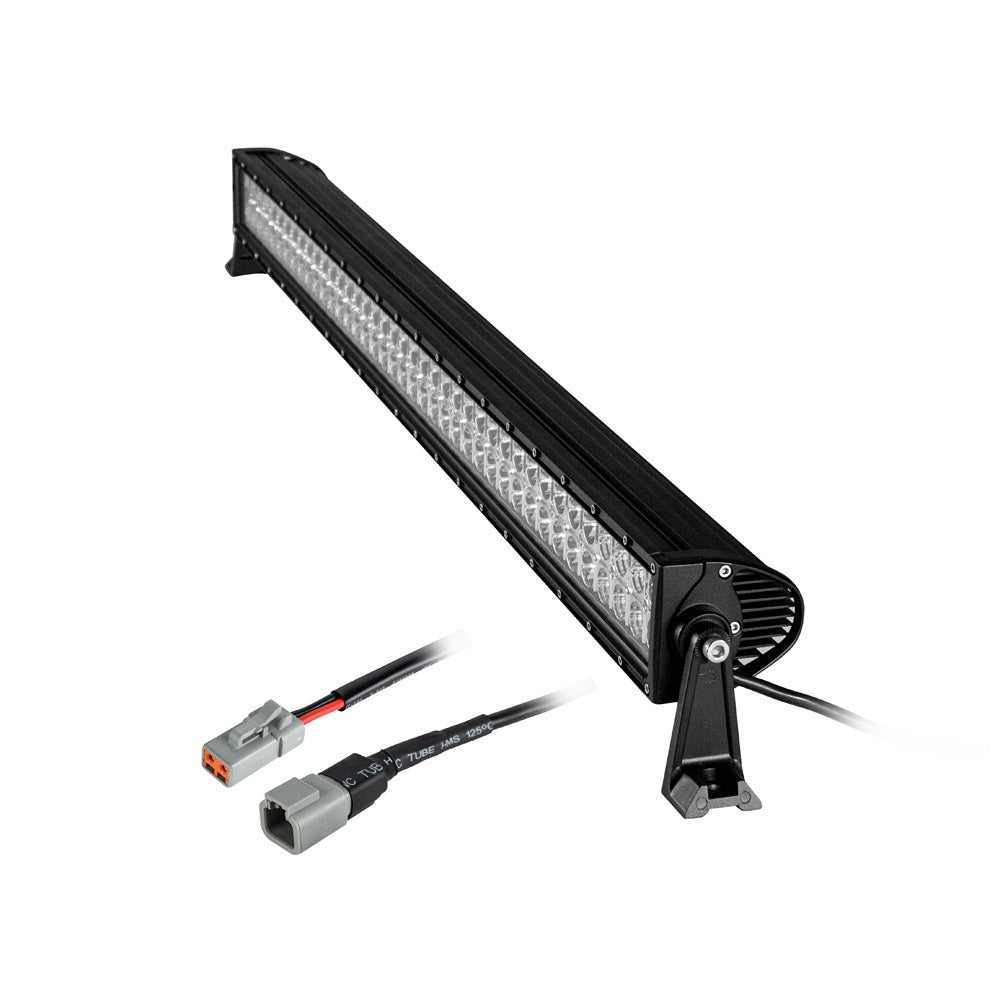

Dual Row LED Light Bar - 42"

SPECS

• Input Voltage: 10-30V DC
• Power Consumption: 240W
• (80-3W CREE LEDs)
• Raw Lumens: 19200
• LUX @ 10M: 1100
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: Black
• Lens Material: PC
• Mounting Bracket: Die-cast Aluminum
• Length of Bar without Mounting Brackets: 42"
• Hole Dimensions:

• Brackets turned inward - 41.50"
• Brackets turned outward - 43.75"
• Mounting Bolt Drill - .25"

• Height of Light Bar Itself: 3"
• Depth of Light Bar Itself: 3.50"
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: -40°C to +60°C
• Current Consumption: 12 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity
