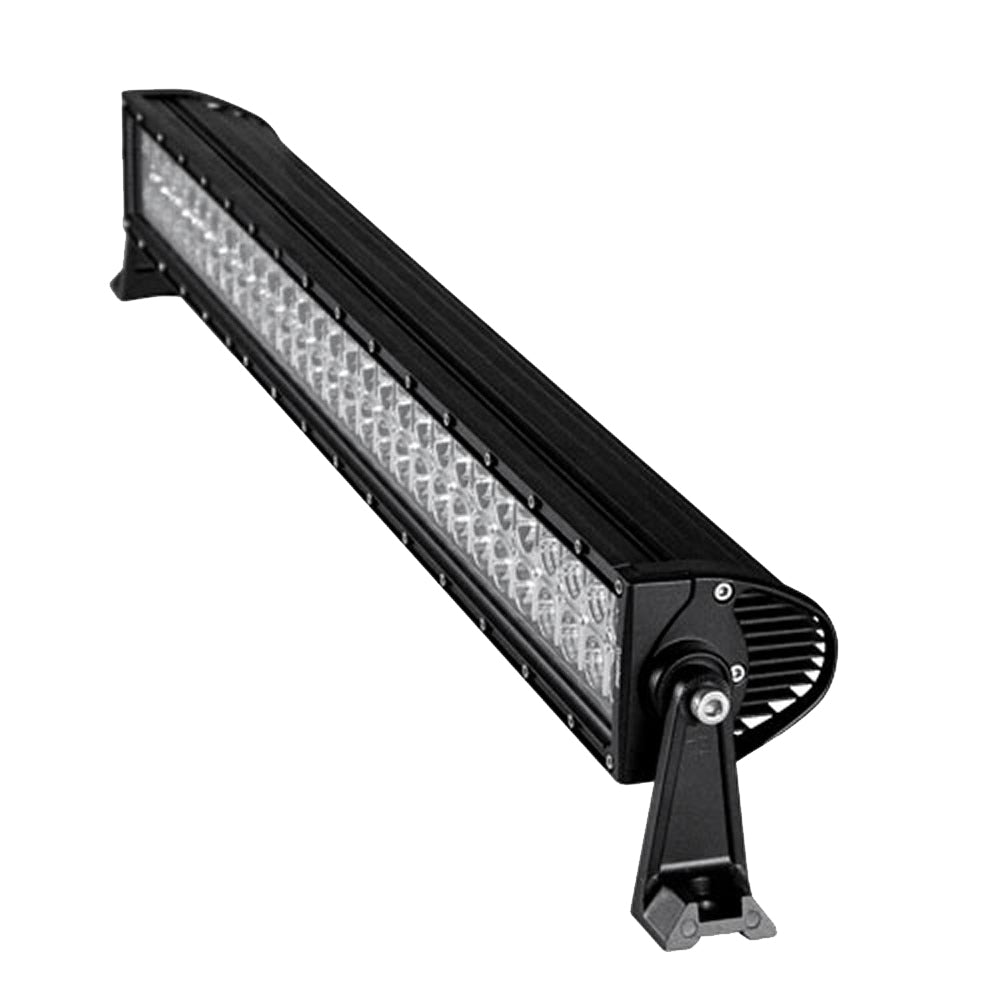

Dual Row LED Light Bar - 30"

SPECS

• Input Voltage: 10-30V DC
• Power Consumption: 180W
• (60-3W CREE LEDs)
• Raw Lumens: 14400
• LUX @ 10M: 870
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: Black
• Lens Material: PC
• Mounting Bracket: Die-cast Aluminum
• Length of Bar without Mounting Brackets: 32.16"
• Hole Dimensions:

• Brackets turned inward - 31.25"
• Brackets turned outward - 33.75"
• Mounting Bolt Drill - .25"

• Height of Light Bar Itself: 3"
• Depth of Light Bar Itself: 3.50"
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: -40°C to +60°C
• Current Consumption: 9.5 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity
