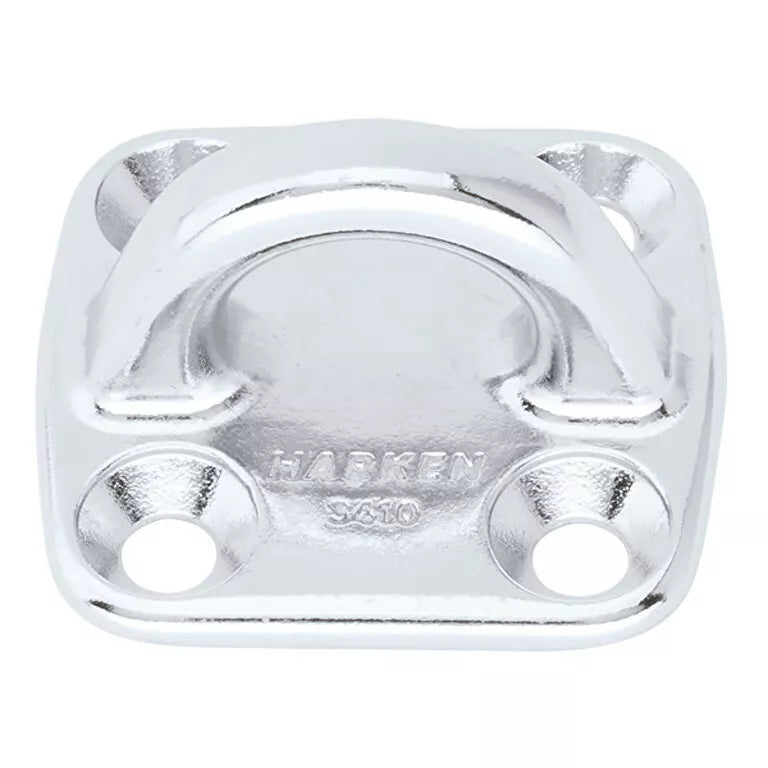

Harken Small Square Duplex Padeye
Harken Small Square Duplex Padeye
SKU:HAR-3410
1359 in stock
Not all sailors know this: there are different grades of stainless steel and they offer different takes on the balance between structural strength and corrosion resistance. Duplex is a class of stainless steel, new to Harken’s pad-eye line-up. It offers increased amounts of chromium in the alloy for enhanced corrosion resistance at very high relative strengths. All sailors should know this: Stainless does not mean maintenance free. Make sure to inspect structural stainless deck hardware regularly and clean and restore the finish as needed.
SPECIFICATIONS
| Weight (g) | 107 g |
| Weight (oz) | 3.8 oz |
| Maximum working load (kg) | 2041 kg |
| Maximum working load (lb) | 4500 lb |
| Breaking load (kg) | 4082 kg |
| Breaking load (lb) | 9000 lb |
| A (mm) | 52 mm |
| A (in) | 2 in |
| B (mm) | 48 mm |
| B (in) | 1 7/8 in |
| C (mm) | 30 mm |
| C (in) | 1 3/16 in |
| D (mm) | 30 mm |
| D (in) | 1 3/16 in |
| E (mm) | 30 mm |
| E (in) | 1 3/16 in |
| F (mm) | 16 mm |
| F (in) | 5/8 in |
| G (mm) | 22 mm |
| G (in) | 7/8 in |
Couldn't load pickup availability
The previous owner of my J24 removed some of the original deck hardware and filled it with silicone. This padeye fit the original holes perfectly with no new drilling and appears to be a stout part. Will work great to hold main load block for the downhaul & is heavy enough I will run jacklines through it if needed. Stout, well made, excellent machining finish, & corrosion resistant material. The chamfer/taper in the screwholes is a nice touch & keeps the top of the padeye flat for standup springs & should help keep it sealed, just use tapered machine screws & 4200.
