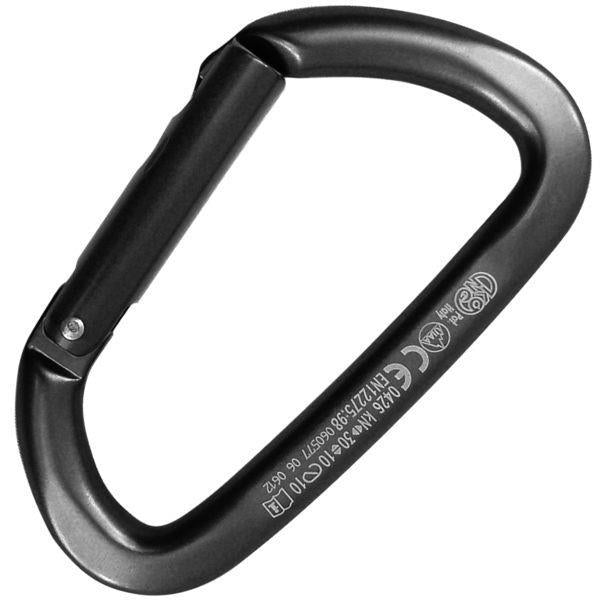

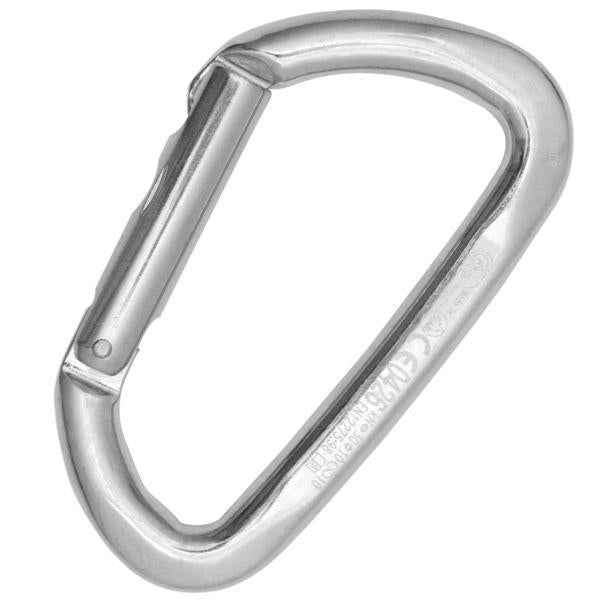

ALUMINUM ALLOY | STRAIGHT GATE

Heavy load aluminum carabiner. Designed for climbing and the use on quickdraws. The straight gate allows an easy clipping on the bolts. The contact surfaces are wider to reduce wear and improve the passage of the rope. The D shape transfers the majority of the load on the main axis of the carabiner, which is the most resistant. High quality product entirely developed and produced in Italy. Tested piece by piece.

Standards - EN 12275, UIAA
Material - Alu Alloy
Type - Keylock
Main Axis Load - 30kN
Minor Axis Load - 10kN
Open Gate Load - 10kN
Weight - 65g
Shape - Asymmetric

A. Length - 110mm
B. Width - 62.5mm
C. Body Diameter - 11mm
D. Eyelet Diameter - /
E. Gate Opening Diameter - 22mm

Sleeve - Without Sleeve
