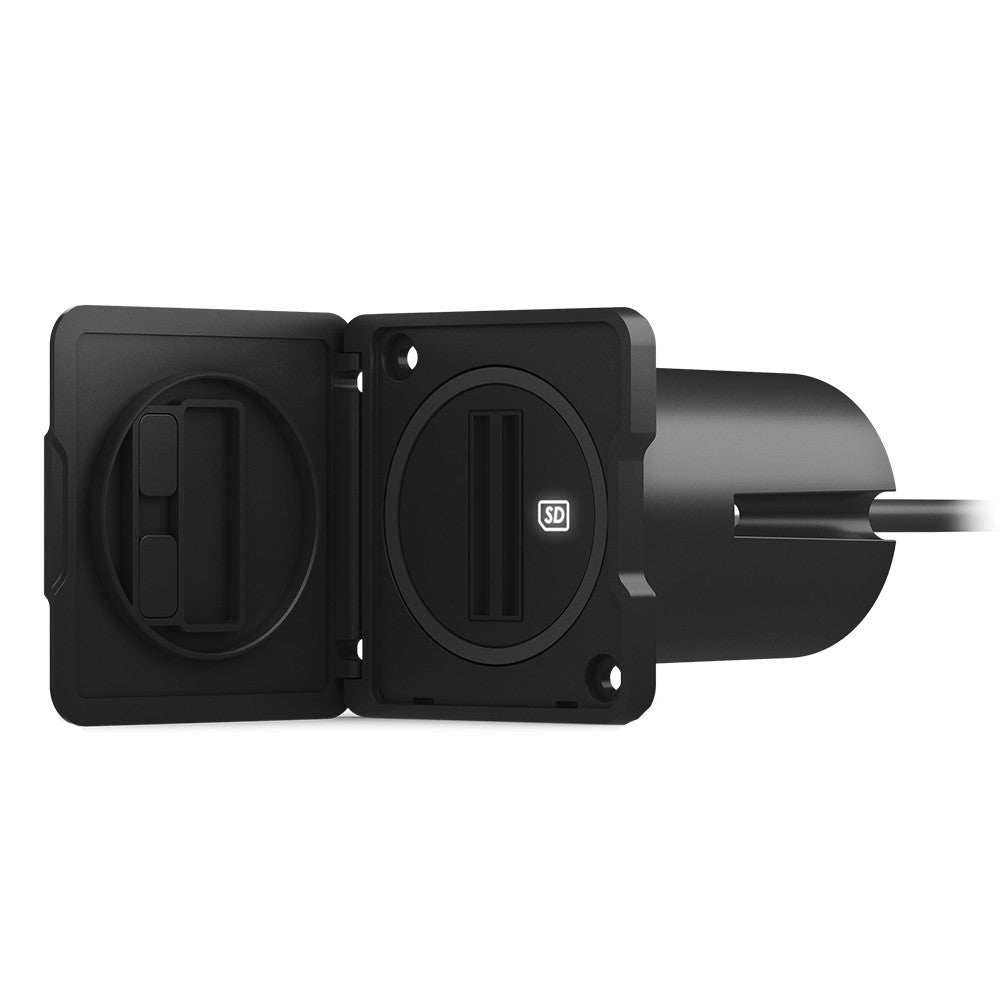

USB Card Reader

Save space on your helm with the compact, water-resistant SD™ card reader. It holds two full-size SD cards for quick access to charts, software updates and ActiveCaptain® data.

Featuring a 2”x 2” footprint, flush mounting and USB connection to the back of your chartplotter, this card reader easily integrates into a crowded dash or elsewhere at the helm.

Specifications:

• Dimensions (W×H×D): 2” x 2” x 2.4” (excluding the cable)
• Weight: 4.025 oz
• Temperature range: -15C to 70C
• Material: fully gasketed, high-impact plastic, waterproof to IPX7 standards
• Input power: 4.75V – 5.25V
• Maximum power usage at 10 Vdc: 2.5 W
• Typical current draw at 12 Vdc: 100 mA
• Maximum current draw at 12 Vdc: 500mA
• Compass-safe distance: 21" (533 mm)

In the Box:

• Garmin USB card reader
• Mounting hardware
• Power cable
• Documentation
