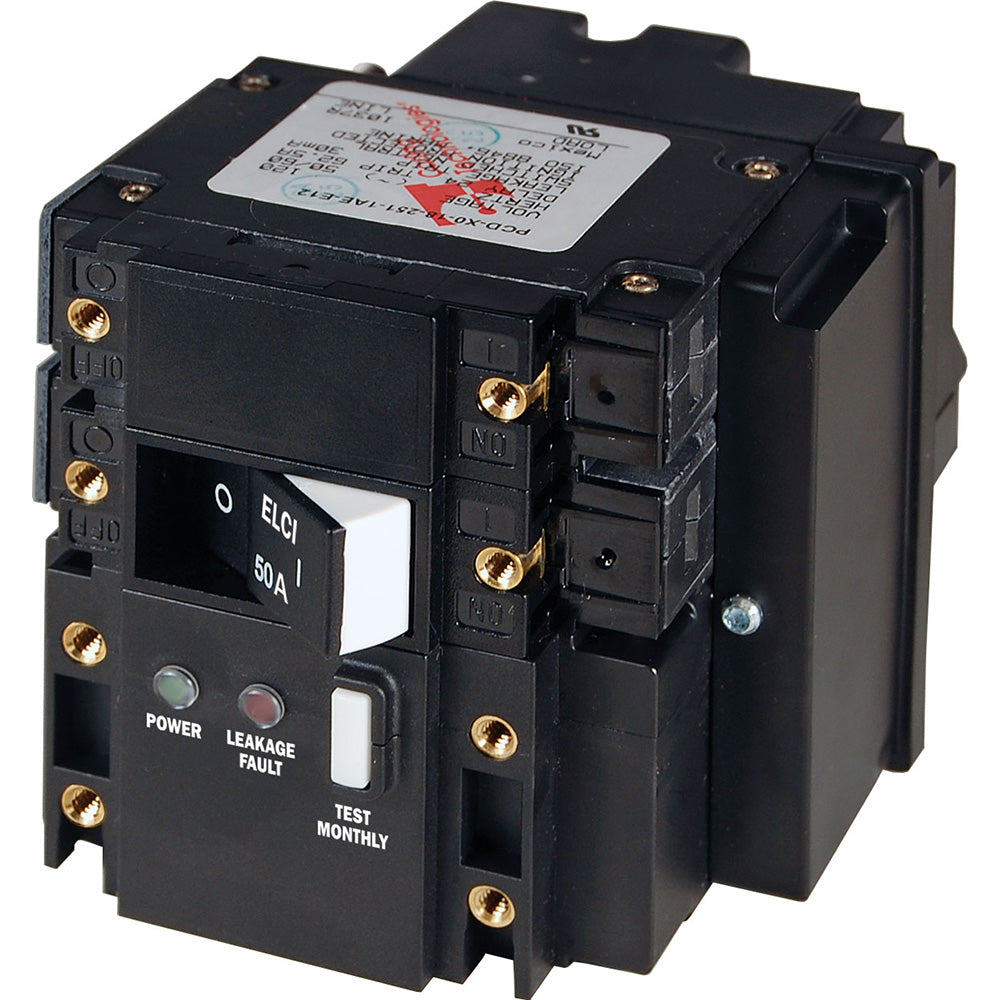

C-Series ELCI Circuit Breaker - Double Pole 240V AC 50A

Features:

• Trips on short circuits, overloads, or leakage to ground
• Front panel mount—installed in a power distribution panel

Specifications:

• Amperage: 50A
• Actuator Style: Flat Rocker
• Poles: 2
• Ignition Protected: Yes
• Maximum Voltage: 120V AC per pole & 240V AC per pole
• Circuit Breaker Type: Magnetic Hydraulic (trip free)
• Interrupt Capacity: 5000A
• Minimum Operating Temperature: -35° C
• Maximum Operating Temperature: 66° C
• Leakage Trip Amps: 30mA
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6 in-lb (0.68 Nm)
• Switching Cycles: 10000
• Weight: 1.20 lb. (0.54 kg)
