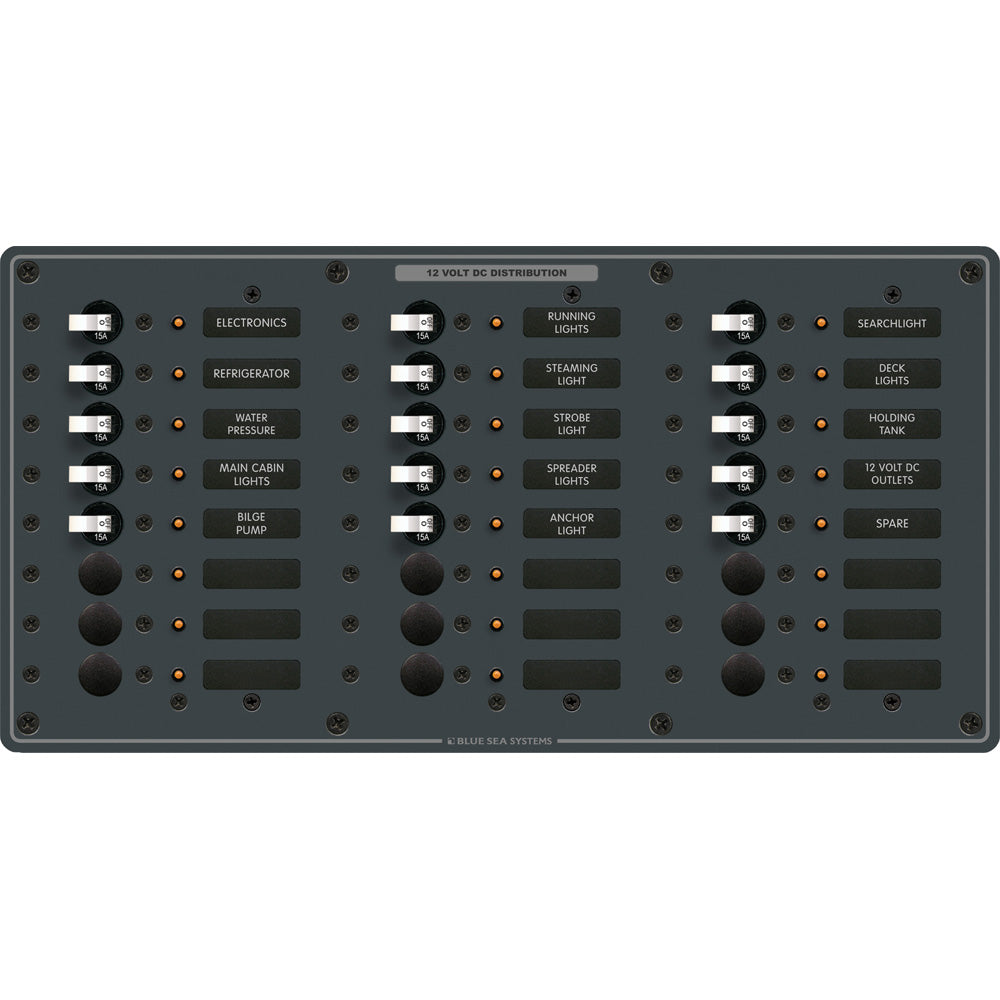

Blue Sea 8264 Traditional Metal DC Panel - 24 Positions

Blue Sea 8264 Traditional Metal DC Panel - 24 Positions

BLU-8264

Out of stock

$805.82 USD
$1,029.33 USD $805.82 USD
Sale Sold out
Shipping calculated at checkout.
8264 Traditional Metal DC Panel - 24 Positions

Features:
  • All positive, negative and grounding buses installed, fully pre-wired
  • Panels with meters include toggle switch for mounting up to 3 battery banks
  • All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
  • All circuit label positions are backlit on standard panels - No kit required
  • "ON" indicating LEDs installed in all circuit positions


Specifications:
  • Positions: 24
  • Nominal Voltage: 12 VDC/24 VDC
  • Maximum Amperage: 100A per bus
  • Height: 7.50" (190.5 mm)
  • Width: 14.75" (374.65 mm)
  • Weight: 7.45lb. (3.38 kg)

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more infomation go to www.P65Warnings.ca.gov

NOTE: This product is a special order direct from the manufacturer and could have a lead-time in excess of 4 weeks. Contact Us for a more accurate time estimate.

Product Literature

Quick Guide

Owners Manual
