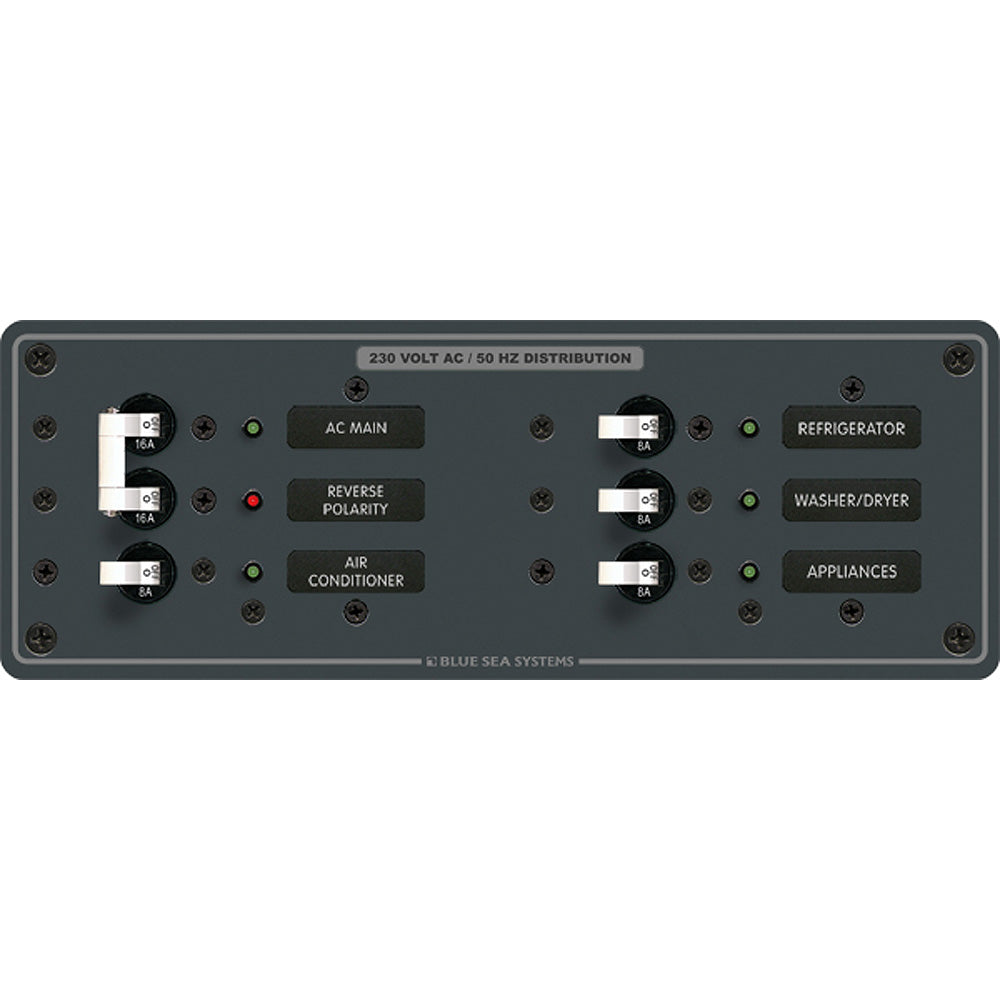

Blue Sea 8199 AC Main + Branch A-Series Toggle Circuit Breaker Panel (230V) - Main + 4 Position

Blue Sea 8199 AC Main + Branch A-Series Toggle Circuit Breaker Panel (230V) - Main + 4 Position

BLU-8199

Out of stock

$312.85 USD
$399.63 USD $312.85 USD
Sale Sold out
Shipping calculated at checkout.
230V AC Main + Branch A-Series Toggle Circuit Breaker Panel

PN: 8199
White Switches


  • (1) 16A Double Pole Circuit Breaker Installed

  • (4) 8A Single Pole Circuit Breakers Installed



    • Features:
    • Red reverse polarity indicating LED
    • All hot, neutral and safety ground buses installed, fully pre-wired
    • All circuit label positions are backlit on standard panels - No kit required
    • "ON" indicating LEDs installed in all circuit positions
    • Maximum panel amperage - 50 Amperes
    • MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
    • Two-part polyurethane slate gray finish
    • Heavy 1/8" aluminum 5052 alloy
    • Industry standard height and width
    • Countersunk mounting holes throughout
    • Detailed installation instructions and cutout template included
    • Includes set of 30 common Large Format Labels
    • Over 500 individual Labels available


    WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more infomation go to www.P65Warnings.ca.gov

    Product Literature

    Quick Guide

    Owners Manual
