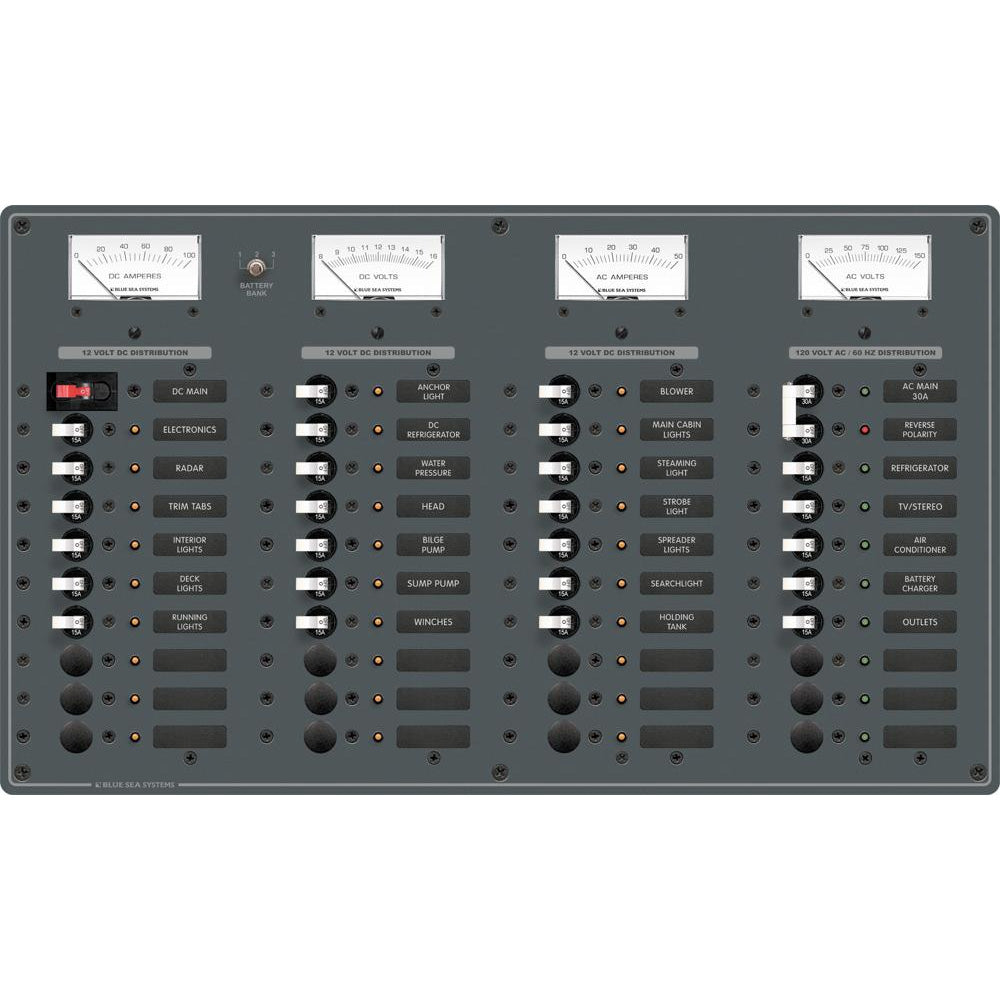

Blue Sea 8095 AC Main +8 Positions / DC Main +29 Positions Toggle Circuit Breaker Panel (White Switches)
Blue Sea 8095 AC Main +8 Positions / DC Main +29 Positions Toggle Circuit Breaker Panel (White Switches)
SKU:BLU-8095
Low stock: 1 left
Regular price
$1,672.07 USD
Regular price
$2,135.28 USD
Sale price
$1,672.07 USD
Unit price
/
per
Shipping calculated at checkout.
AC Main +8 Positions / DC Main +29 Positions
PN: 8095
White Switches
AC Features
DC Features
Specifications:
Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
PN: 8095
White Switches
- Includes set of 30 common AC and 30 common DC labels
- All AC and DC buses installed, fully pre-wired
- Label backlighting pre-installed
- All LEDs installed
- Maximum panel Amperage
- 100 Amperes DC
- 50 Amperes AC
- 100 Amperes DC
AC Features
- Red reverse polarity indicating LED
- 9353, 0-150 Volt AC Voltmeter
- 9630, 0-50 Amp AC Ammeter
DC Features
- 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
- 8003, 8-16 Volt DC Voltmeter
- 8017, 0-100 Amp DC Ammeter
- Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter
Specifications:
- AC Positions: Source Selectors +8
- DC Positions: Main +29
- 120 Volts AC
- 12 Volts DC
- (1) 30A - (5) 15A AC Circuit Breakers
- (1) 100A - (20) 15A DC Circuit Breakers
Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more infomation go to www.P65Warnings.ca.gov
Couldn't load pickup availability
Product Literature
