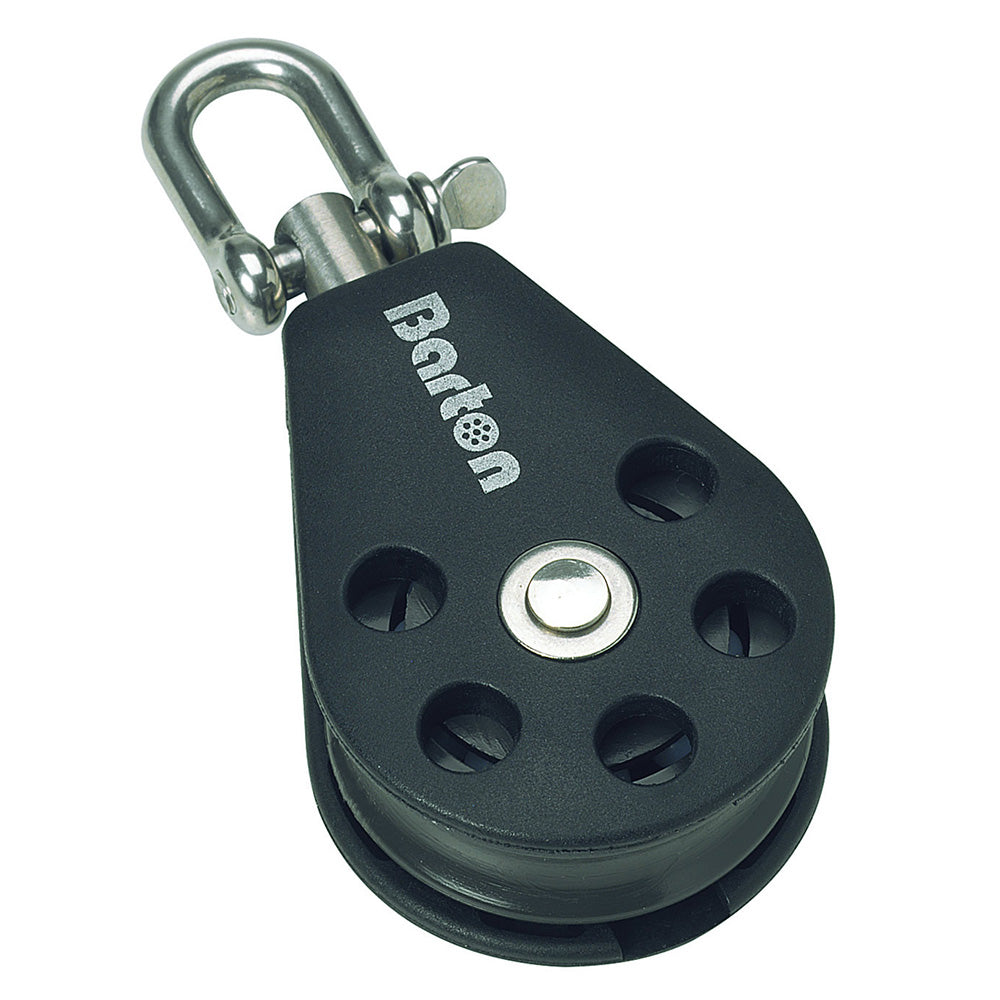

Barton Series 3 Single Swivel Block, 45mm

A Series 3 plain bearing single block with a fully swivelling head and removable shackle, for dinghies, dayboats and light cruising yachts. A precision-moulded acetal sheave runs on a large-diameter brass bearing for free running under high loads.

Specifications

• Sheave: 45 x 13mm (1-3/4 x 1/2in)
• Max rope diameter: 10mm (3/8in)
• Safe working load: 400kg / 881lb
• Breaking load: 800kg / 1,763lb
• Length: 100mm (3-15/16in)
• Weight: 73g

Manufacturer part number: N03130
