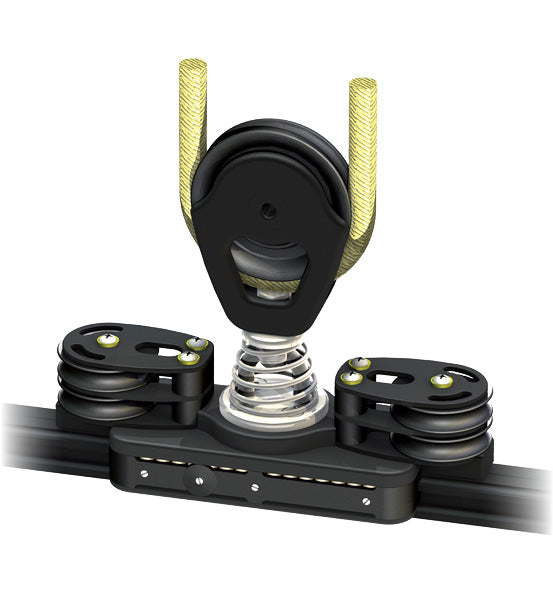

Antal 614.214 Big Boat Car - Maxi 47 L=230mm (4:1) Shackle + 2 Control Sheave
Antal 614.214 Big Boat Car - Maxi 47 L=230mm (4:1) Shackle + 2 Control Sheave
SKU:ANT-614.214
Available: Contact for leadtime
Car with 2 sheaves. Ball bearing car in hard black anodized aluminum with four ball circuits: 2 Torlon ball circuits (lower) and 2 Delrin ball circuits (upper). The car will remain on the track even after ball bearing failure (overload). Side windows for easy maintenance and ball bearing cleaning and/or replacement. The car, the track and all components are extruded in high strength alloy and hard black anodized (steel parts: AISI 316). The sheet block is not included
Product Specifications
| Attribute | Value |
|---|---|
| Length (L) | 230 mm |
| Width (W) | 107 mm |
| Track dimensions | 47 x 31 mm |
| SWL | 3800 kg |
| ¯ control pulley | 75 mm |
| ¯ suggested block | 120 mm |
| No. balls | 172 x Torlon + 172 x Delrin |
| M | 333 mm |
NOTE: This product is a special order direct from the manufacturer and could have a lead-time in excess of 4 weeks. Contact Us for a more accurate time estimate.
