Antal 609.322 S.B.R. 120, Nylon Receptacle (M10 Toggle) - 20X10mm Flat Batten
Antal 609.322 S.B.R. 120, Nylon Receptacle (M10 Toggle) - 20X10mm Flat Batten
SKU:ANT-609.322
In stock
Regular price
$86.70 USD
Regular price
$102.00 USD
Sale price
$86.70 USD
Unit price
/
per

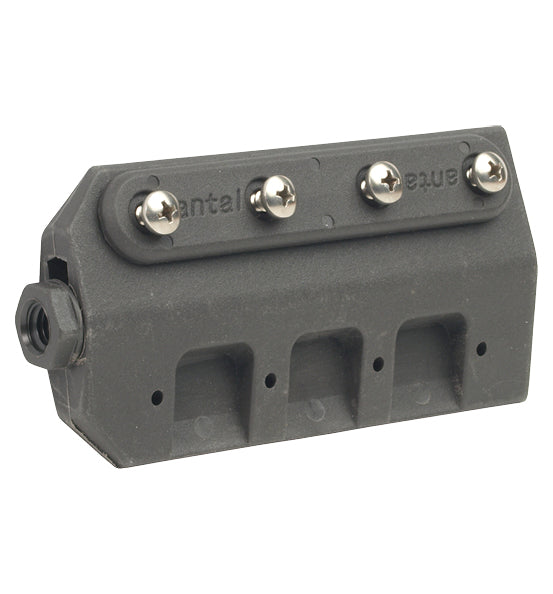

The SBR is different from standard batten receptacles in that it fits inside the batten pocket, making it invisible on the outside except for the small fastening plate. Thereby almost completely eliminating chafe on the mast and rigging. Moreover the batten will be not on one side, but perfectly in the middle. Each SBR includes: the main body;Êside plates to fix the receptacle to the sail;Êtrimming screw for batten compression; the cap with a threaded hole to screw the receptacle in the toggle of the batten slider.
Product Specifications
Attribute | Value |
---|---|
Length (L) | 120 mm |
Height (H) | 64 mm |
Batten dimensions | 20 x 10 mm |
Weight | 0,10 kg |
Material | Resin |
Fixing screws | 8 |
NOTE: This product is a special order direct from the manufacturer and could have a lead-time in excess of 4 weeks. Contact Us for a more accurate time estimate.
