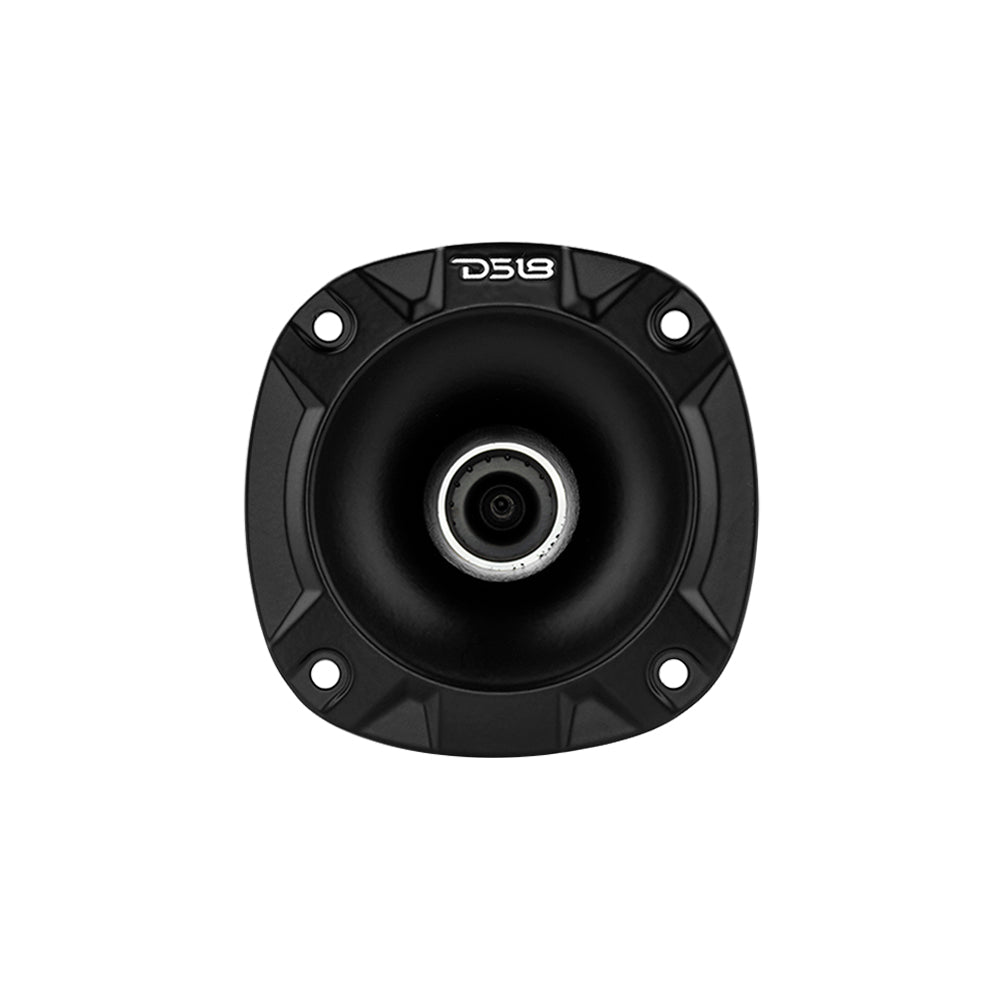

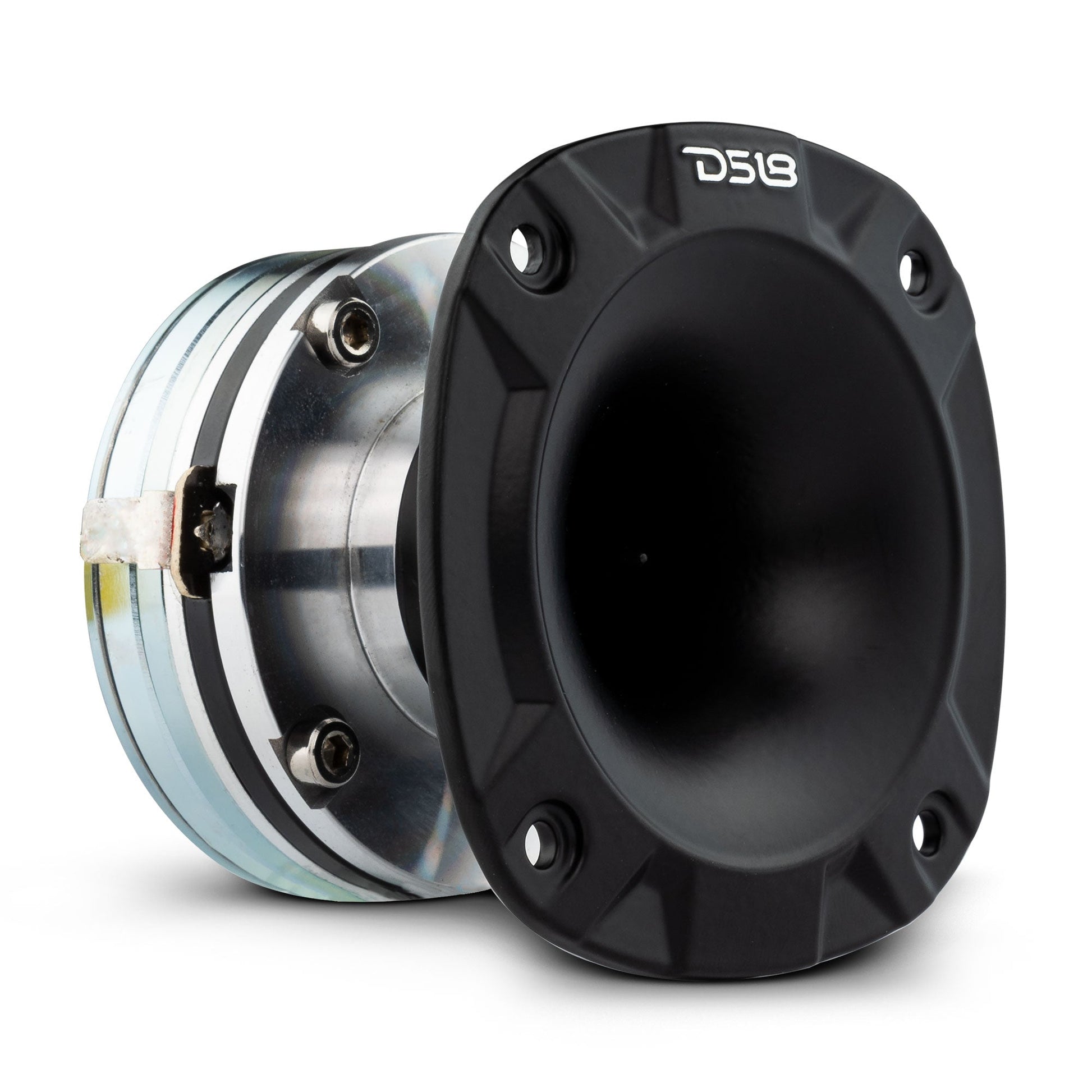

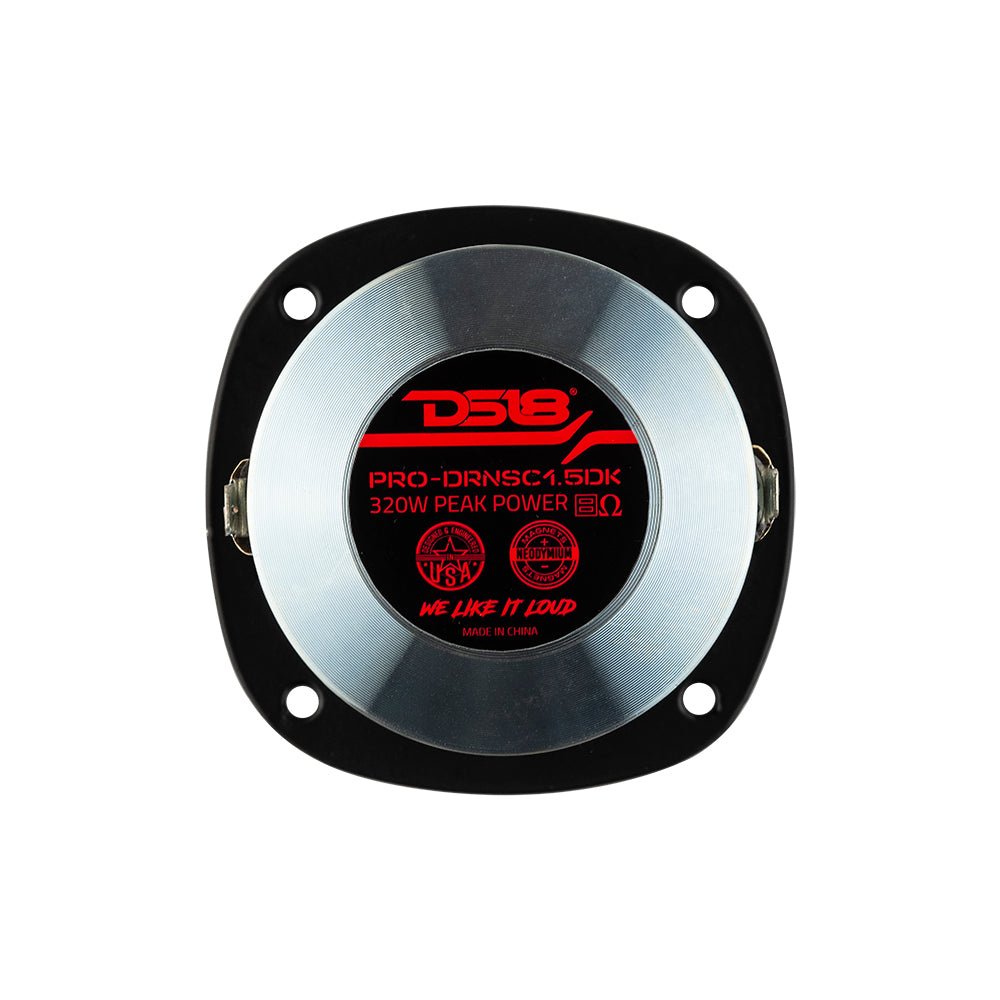

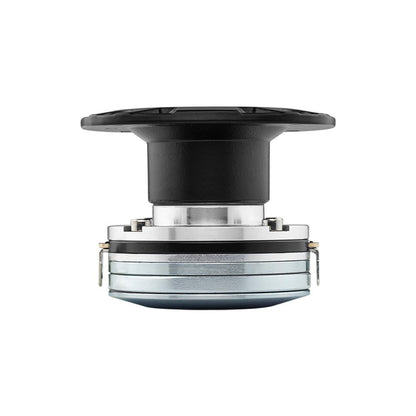

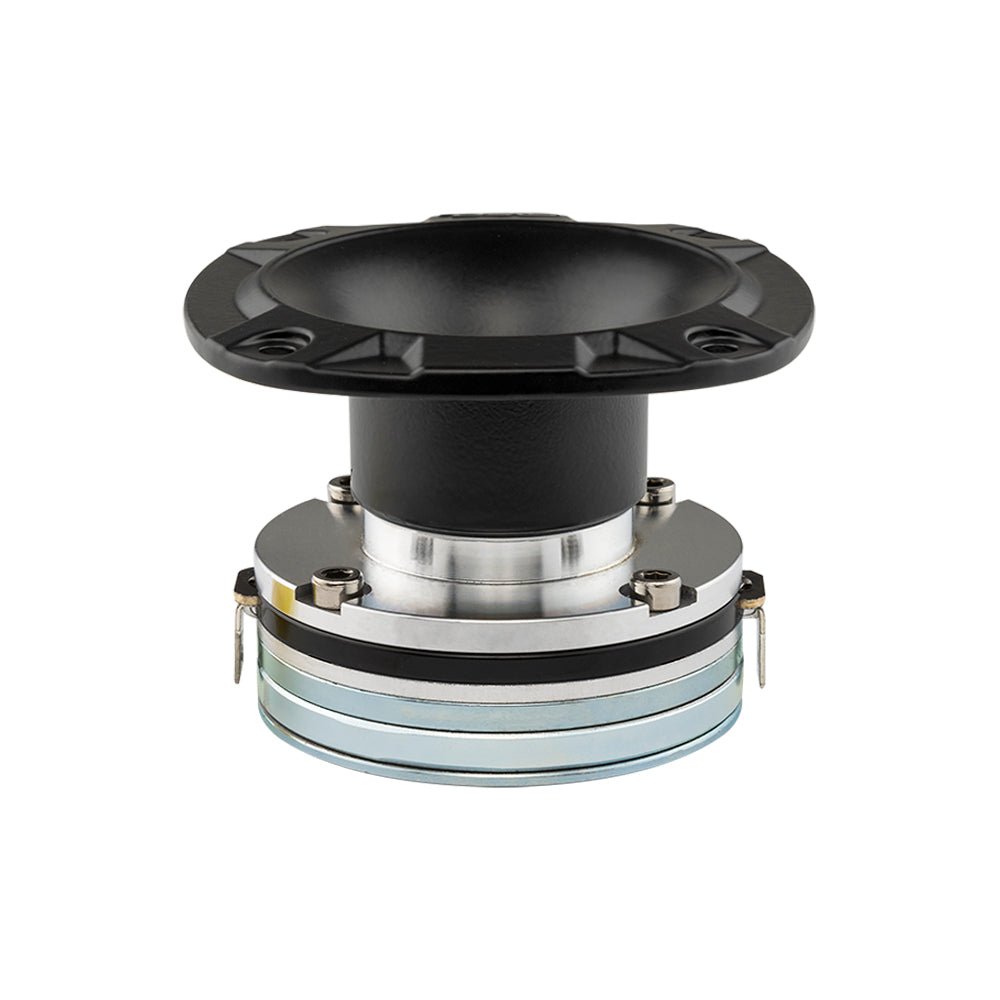

1" Neodymium Driver And Horn Kit 160 Watts 1.5" Polyimide 8-Ohm Vc

1" Neodymium Driver And Horn Kit 160 Watts 1.5" Polyimide 8-Ohm Vc

SKU:PRO-DRNSC1.5DK

Out of stock

Regular price $104.95 USD
Regular price Sale price $104.95 USD
Sale Sold out
Shipping calculated at checkout.

DS18 PRO-DRNSC1.5DK 1" Neodymium Driver with 1.5" Composite Polyamide VC 8 Ohm With Horn

The PRO-DRNSC1.5DK boasts unmatched power handling for the Pro Audio sound you love. This neodymium compression driver ensures unparalleled performance that delivers impressive sound with striking clarity and limitless depth. Equipped with a highly durable 1.5” voice coil, these drivers are guaranteed to perform at their maximum potential for the entirety of any jam session. This compression driver doesn’t draw an excessive amount of power from your amplifier & ensures long lasting performance from your equipment. This variation of the PRO-DRNSC includes a non-removable horn throat so that it is ready to be quickly installed.

Highlights

  • 80W AES Power Handling; 160W Program Power Handling; 320W Peak Power Handling
  • Drop-in voice coils for fast and easy repairs in the rare occasion they are overpowered
  • Neodymium Magnets to ensure the highest efficiency, and power handling, without the bulk of traditional ferrite magnets
  • Compact driver with functionality in spaces most drivers can’t fit
  • Made to fit most standard thread on horn throats
  • 109dB sensitivity for easy climbs to MAX volume

Great For

  • Car Audio
  • Pro Audio
  • DIY Projects
  • Motorcycles
  • Stunt Walls

    Technical Details
                  PRO-DRNSC1.5DK Product Manual

    SPECIFICATIONS
    Nominal Impedance  8 ohm
    AES Power handling 80 W
    Program Power Handling  160 W
    Peak Power handling 320 W
    Sensitivity (1w/1m) With Horn 111 dB
    Frequency Response 1K-20KHz
    Recommended Hi Pass Crossover 2KHz
    Pair or Single Single
    MOTOR
    Voice Coil Diameter 1.5" / 38mm
    Voice Coil Former Material  Kapton
    Winding Material  Aluminum
    Diaphragm Material Polyimide
    Magnet Material Neodymium (N38H)
    Magnet Weight 2.4 oz
    Body Color / Finish Silver / Raw
    Body Material Aluminum
    HORN SPECIFICATIONS
    Nominal Diameter 3.15" / 80mm
    Throat Diameter 1" / 25.4mm
    Sound Coverage 60° (round)
    Body Material Aluminum
    Color/Finish Silver / Raw
    MEASUREMENT
    Overall Diameter 3.15" / 80mm
    Overall Depth 2.42" / 61.5mm
    Mounting Depth 2.22" / 56.5mm
    Mounting Hole Diameter 2.75" / 70mm
    Bolt Pattern (Horn) 2.13" / 54mm
