DS18 1.7in Dome Neodymium Tweeter 50 Watts 1in Pei 4-Ohm Vc

DS18 1.7in Dome Neodymium Tweeter 50 Watts 1in Pei 4-Ohm Vc

SKU:sku-39524215488573

931 in stock

Regular price $37.95 USD
Regular price Sale price $37.95 USD
Sale Sold out
Shipping calculated at checkout.

DS18 ZXI-T1 1.7" PEI Dome Tweeter With 1" Aluminum VC 100 Watts Max 4 Ohm

The aluminum design 1" voice coil enhances extreme volume and gives you amazing crisp highs to complement your mid and low range pro audio speakers. These tweeters are great for someone wanting to add crisp and clear highs to their existing system and can also be ran on factory radio power.

Highlights

  • Extremely loud and versatile that will give you clear and crisp highs with overall amazing looks.

  • Great Power and Tweeter design brings extreme high range volume that can be heard for great distances and fill out your frequency range effortlessly.

  • Easily mountable and configured with stock and aftermarket sound systems.

  • AES power handling of 25 watts with a peak of 100 watts @ 4 ohm for a good amount of power that does not require large aftermarket amps

Technical Details
Nominal Diameter 1.7” / 43mm
Nominal Impedance 4 OHMS
AES Power Handling 25W
Program Power Handling 50W
Peak Power Handling 100W
Sensitivity (1w/1m) 92dB
Frequency Response 1KHz-20KHz
Recommended Hi Pass Crossover 3.5KHz
Pair Yes
Body Color & Material Black ABS
MOTOR
Voice Coil Diameter 1”/ 25.4 mm
Voice Coil Former Material Aluminum
Winding Material SV
Diaphragm Material PEI
Magnet Material Neodymium
Magnet Weight 13 g
MEASUREMENTS
WITH ANGLE SURFACE MOUNT ADAPTOR
Overall Diameter 1.89" / 48 mm
Overall Height 1.73" / 44 mm

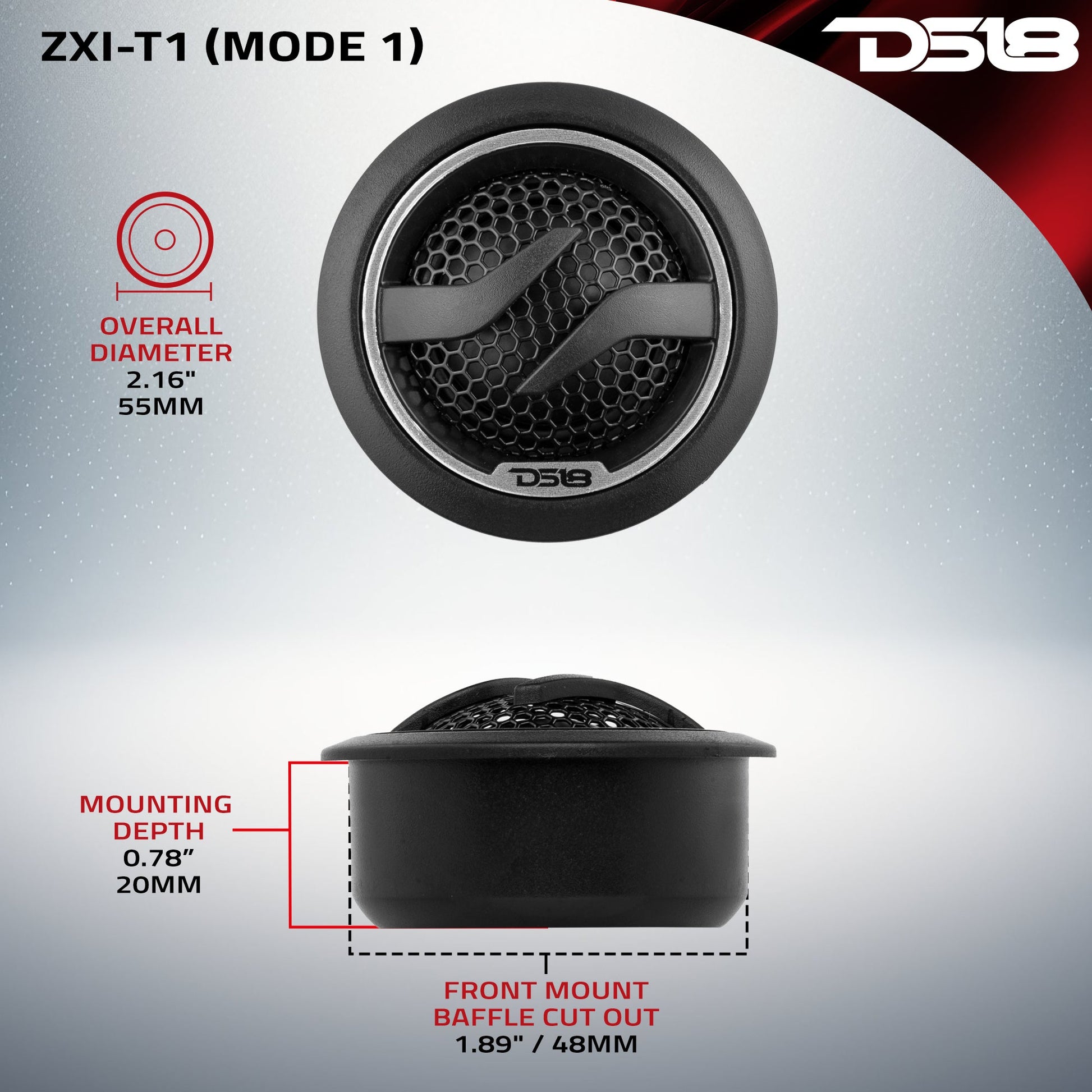

WITH FLUSH MOUNT ADAPTOR
Overall Diameter 2.16" / 55 mm
Overall Depth 1.18" / 30 mm
Front Mount Baffle Cutout 1.89" / 48 mm
Mounting Depth 0.78” / 20 mm
TWEETER WITHOUT ADAPTER
Overall Diameter 1.71" / 43.5 mm
Overall Height 1" / 27.5 mm
